Combination Air Valve, D-020 Series



Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Product Code: ‎D20-P16–06
Configuration Code: GN-LC-NE-MP-ST-PP-VS-OB-SA-RW
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Valve Bolt Set Material
Pressure Release Outlet

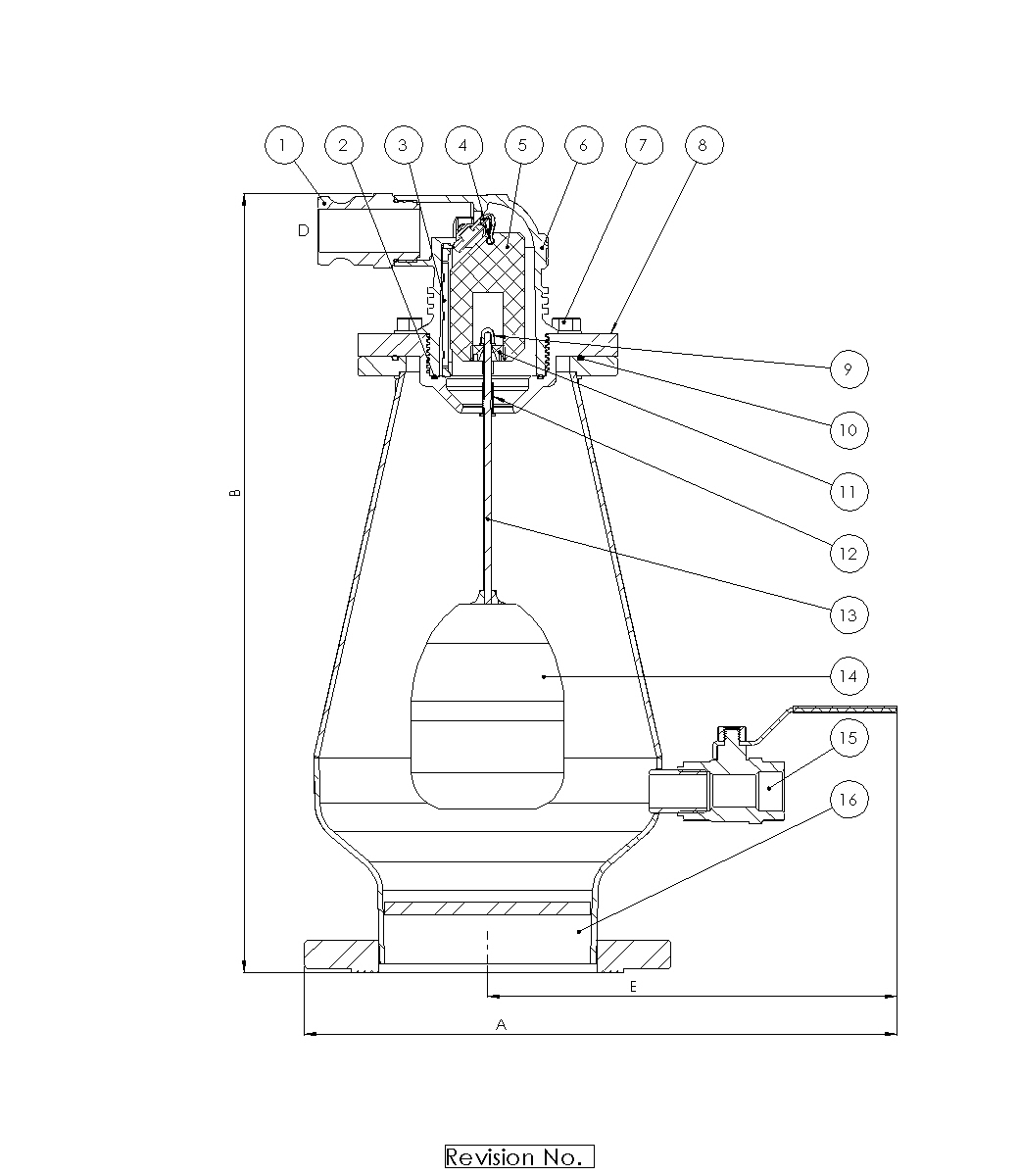

No. Part Material
1 Camlock Polypropylene
2 O-Ring Buna-N
3 Clamping Stem Reinforced Nylon
4 Rolling Seal EPDM
5 Float Connector Polypropylene
6 Body Reinforced Nylon
7 Bolt & Washers Galvanized Steel
8 Cover Reinforced Nylon
9 Domed Nut Stainless Steel SAE 316
10 O-Ring Buna-N
11 Stopper Polypropylene
12 Spring Stainless Steel SAE 316
13 Float Rod Stainless Steel SAE 316
14 Float Polypropylene
15 Press. Release Outlet Stainless Steel 316 Ball Valve
16 Body Cast Steel A216
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Dimension
461 mm (18.16″)
605 mm (23.83″)
318 mm (12.52″)
1½″
Flange Dimensions
Specifications
16 bar (250psi)
Standard Flow
Flange
Multi Std.
6″
22.5 Kg (49.61 Lbs) ±5%
