Combination Air Valve, D-46 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

ARI.D46.WTR.CAT.EN.0822A

D-46.IOM.ENG 02.pdf

Product Code: ‎D46-NS-P10–06
Configuration Code: A1-LI-YE-VS-MF-OB-QS-R0
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Body Material
Seal Material
Bolt Set Material
Assembly Float Material
O-ring Material
Discharge Outlet
Pressure Release Outlet

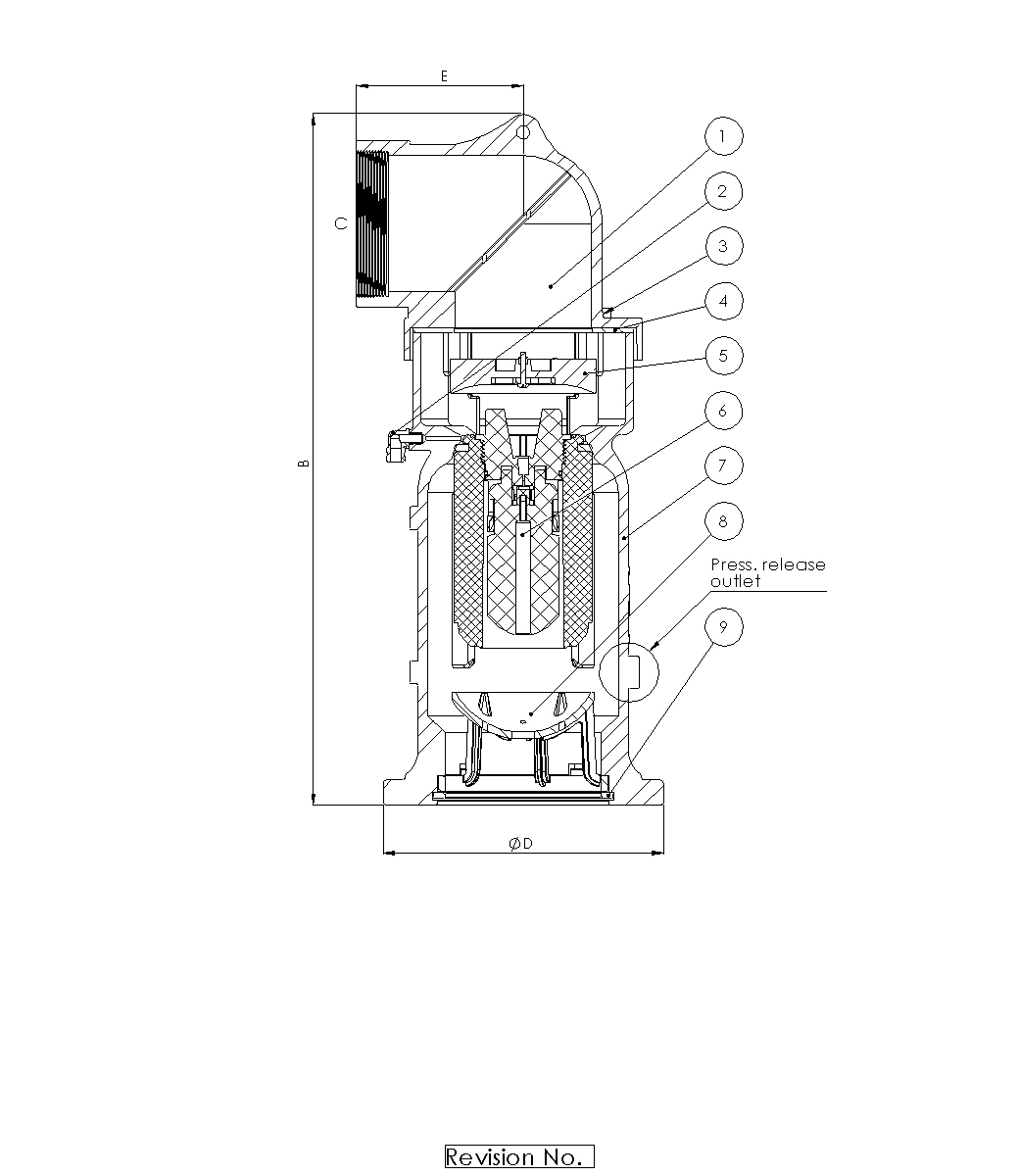

No. Part Material
1 Discharge Outlet Polypropylene
2 Drain Elbow Polypropylene
3 Screw, Nut & Washer Stainless Steel SAE 316
4 Rubber Ring EPDM
5 NS Disc Nylon
6 Float / Seal Assembly * detailed below
7 Body Duct. Iron A536 65-45-12
8 Float Seat Acetal
9 Snap Ring Nylon
10 Press. Release Outlet Without
11 * Assy: Float Polypropylene
12 * Assy: Sealing Head Acetal
13 * Assy: Rolling Seal EPDM
14 * Assy: Seal Material EPDM
15
Dimension
737 mm (29.02″)
6″
214 mm (8.48″)
11″ (280 mm)
3/4″ (22.5 mm)
‎9–1/2″ (241.3 mm)
8
Flange Dimensions
Specifications
D046
10 bar (150 psi)
Flange
ASA 150
Flat Face
6″
60°C (140°F)
43.2 Kg (95.24 Lbs) ±5%
13 mm² (0.020 Sq.in)
