Combination Air Valve, D-025 Compact Series
Product Code: D25-I-P10–03
Configuration Code: GN-LN-NE-MP-ST-PP-OB-SA-CT-RW
Configuration Code: GN-LN-NE-MP-ST-PP-OB-SA-CT-RW
- Configuration
- Product Details
- Information
- Complimentary
Flange Standard
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Clamp
Pressure Release Outlet
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

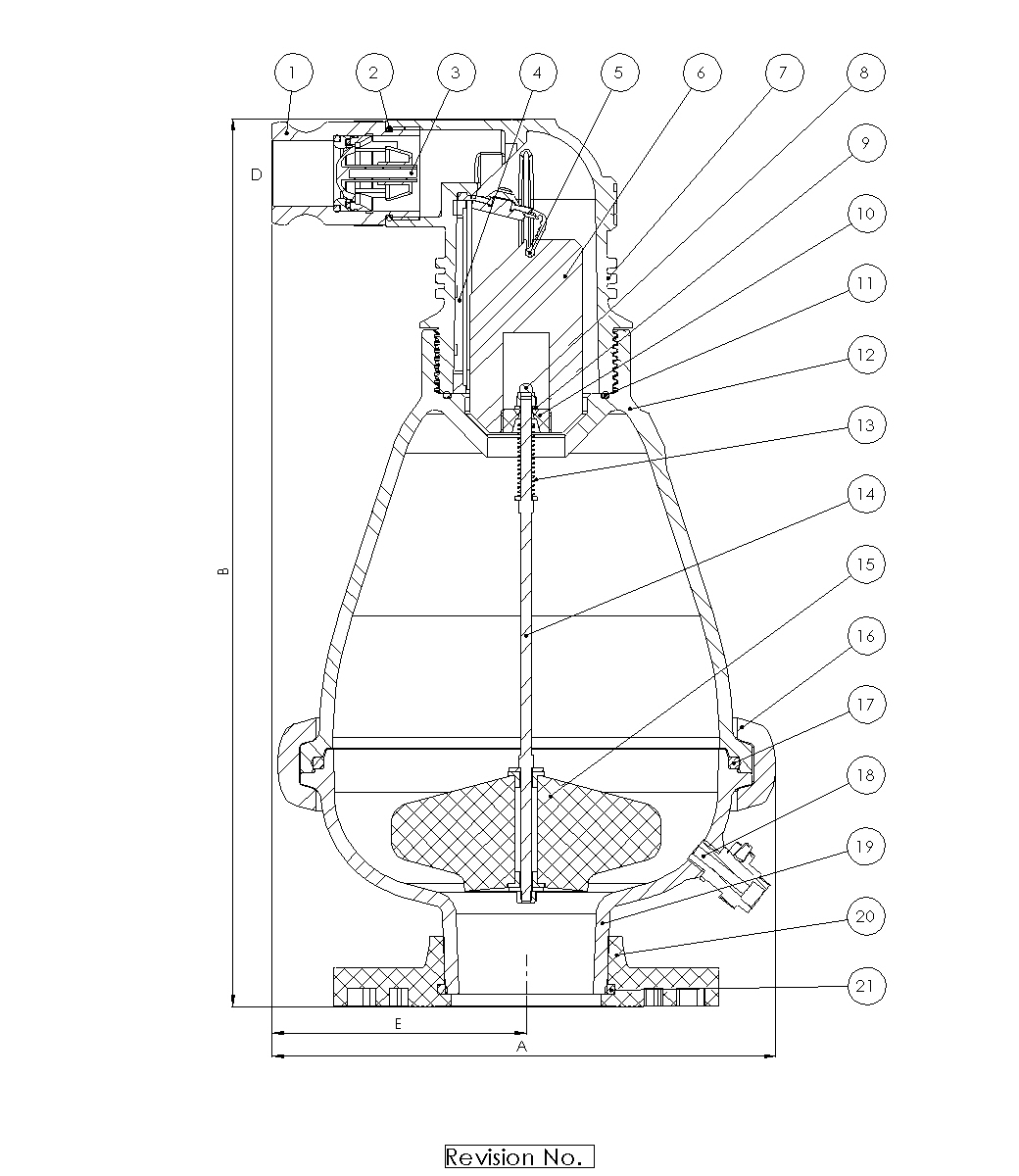

Dimension
262 mm (10.31″)
454 mm (17.87″)
131 mm (5.16″)
1½″
200 mm (7.8″)
25 mm (0.9″)
160 mm (6.3″)
8
Flange Dimensions
|
Specifications
D025
10 bar (150 psi)
One Way - In
Flange
Multi Std.
3″
60°C (140°F)
5.2 Kg (11.46 Lbs) ±5%
804 mm² (1.25 Sq.in)
12 mm² (0.019 in²)
|
