Combination Air Valve, D-025 Compact Series



Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Product Code: D25-V-P10-T2
Configuration Code: NT-LF-NE-MP-ST-PP-OB-SA-CT-RW
  • Configuration
  • Product Details
  • Information
  • Complimentary


Thread Type
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Clamp
Pressure Release Outlet

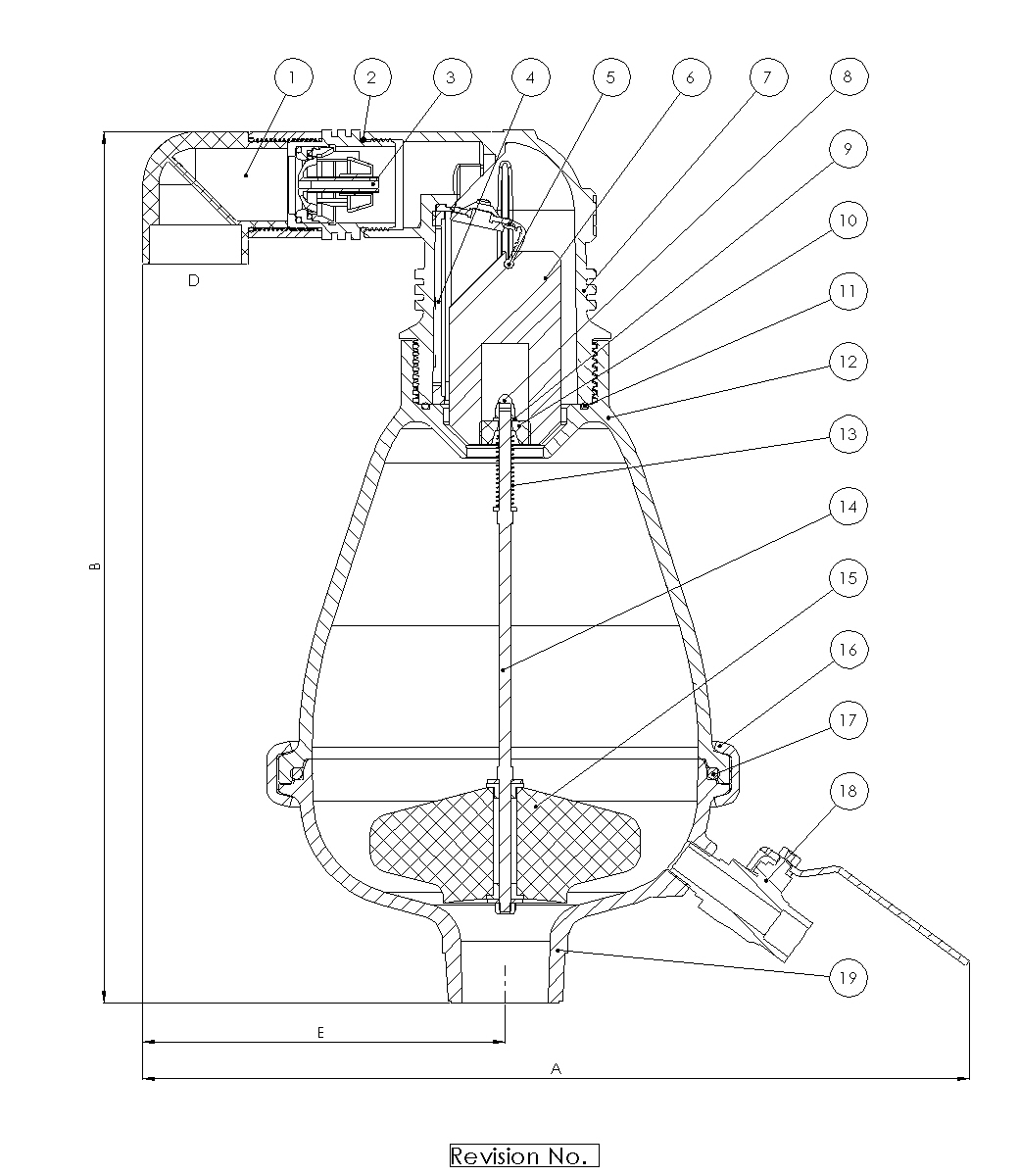

No. Part Material
1 Discharge Outlet Polypropylene
2 O-Ring Buna-N
3 One way out Polypropylene
4 Clamping Stem Reinforced Nylon
5 Rolling Seal EPDM
6 Float Connector Polypropylene
7 Body Stainless Steel SAE 316
8 Domed Nut Stainless Steel SAE 316
9 Washer Stainless Steel SAE 316
10 Stopper Polypropylene
11 O-Ring Buna-N
12 Body Stainless Steel SAE 316
13 Spring Stainless Steel SAE 316
14 Float Rod Stainless Steel SAE 316
15 Float Polypropylene
16 Clamp Assy Stainless Steel SAE 316
17 O-Ring Buna-N
18 Press. Release Outlet Stainless Steel 316 Ball Valve
19 Base Stainless Steel SAE 316
20
21
22
23
24
25
26
27
28
29
30
31
32
Dimension
428.8 mm (16.89″)
451.8 mm (17.80″)
240.7 mm (9.48″)
1½″
Specifications
D025
10 bar (150 psi)
One Way - Out
Threaded
2″
60°C (140°F)
13.8 Kg (30.42 Lbs) ±5%
804 mm² (1.25 Sq.in)
12 mm² (0.019 in²)
