Combination Air Valve, D-025 Compact Series



Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Product Code: ‎D25-P10–04
Configuration Code: GN-LF-NE-MP-ST-PP-OB-SA-CT-RW
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Clamp
Pressure Release Outlet

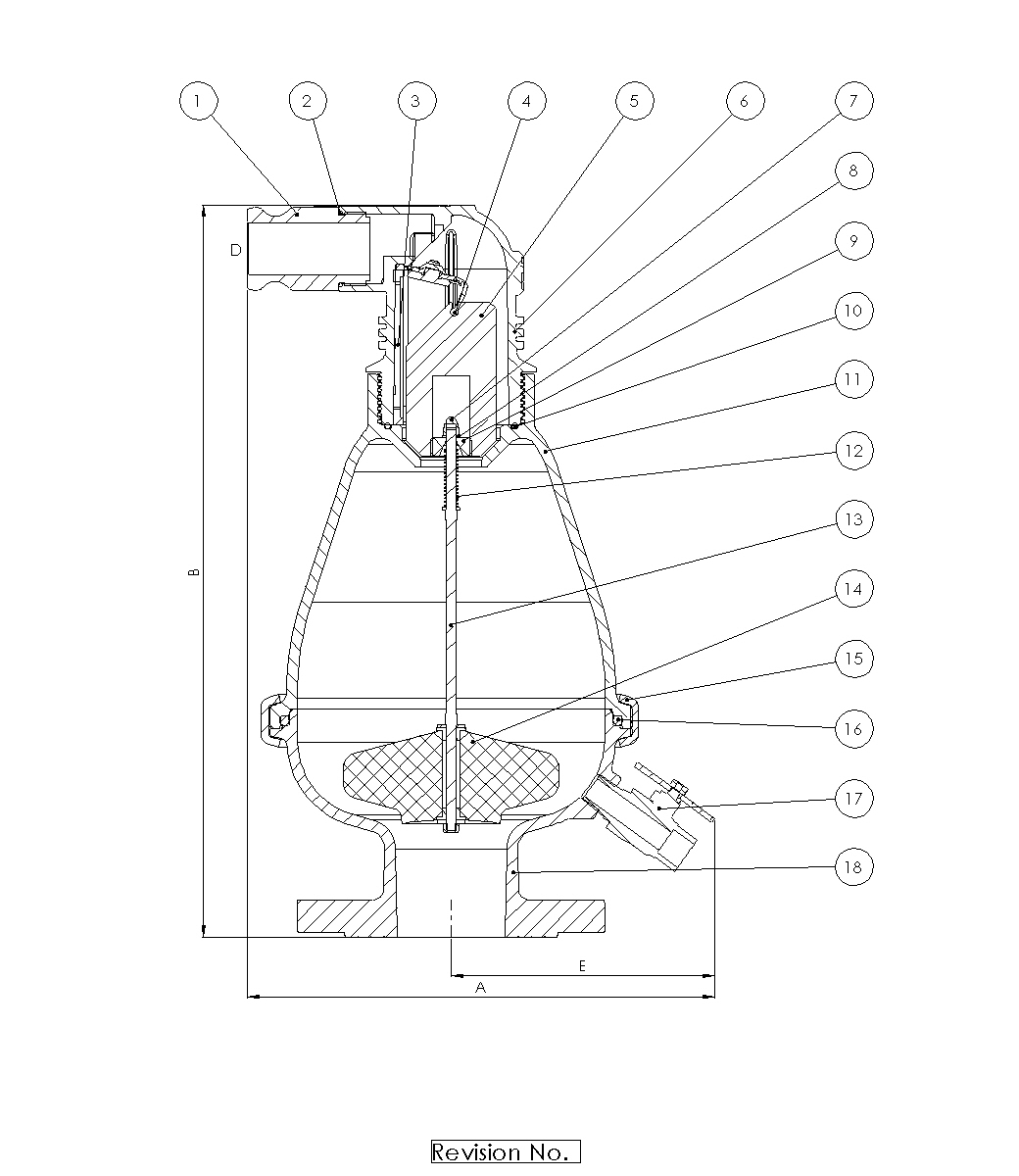

No. Part Material
1 Camlock Polypropylene
2 O-Ring Buna-N
3 Clamping Stem Reinforced Nylon
4 Rolling Seal EPDM
5 Float Connector Polypropylene
6 Body Stainless Steel SAE 316
7 Domed Nut Stainless Steel SAE 316
8 Washer Stainless Steel SAE 316
9 Stopper Polypropylene
10 O-Ring Buna-N
11 Body Stainless Steel SAE 316
12 Spring Stainless Steel SAE 316
13 Float Rod Stainless Steel SAE 316
14 Float Polypropylene
15 Clamp Assy Stainless Steel SAE 316
16 O-Ring Buna-N
17 Press. Release Outlet Stainless Steel 316 Ball Valve
18 Base Stainless Steel SAE 316
19 O-Ring Buna-N
20
21
22
23
24
25
26
27
28
29
30
31
32
Dimension
369 mm (14.53″)
471 mm (18.54″)
237 mm (9.33″)
1½″
228 mm (8.9″)
24.35 mm (0.9″)
184 mm (7.2″)
8
Flange Dimensions
Specifications
D025
10 bar (150 psi)
Standard Flow
Flange
Multi Std.
4″
60°C (140°F)
19.4 Kg (42.77 Lbs) ±5%
804 mm² (1.25 Sq.in)
12 mm² (0.019 in²)
