Combination Air Valve, D-025L Extended Series
Product Code: D25L-P10–03
Configuration Code: GN-LN-NE-MP-ST-PP-OB-SA-CT-RW
Configuration Code: GN-LN-NE-MP-ST-PP-OB-SA-CT-RW
- Configuration
- Product Details
- Information
- Complimentary
Flange Standard
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Pressure Release Outlet
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

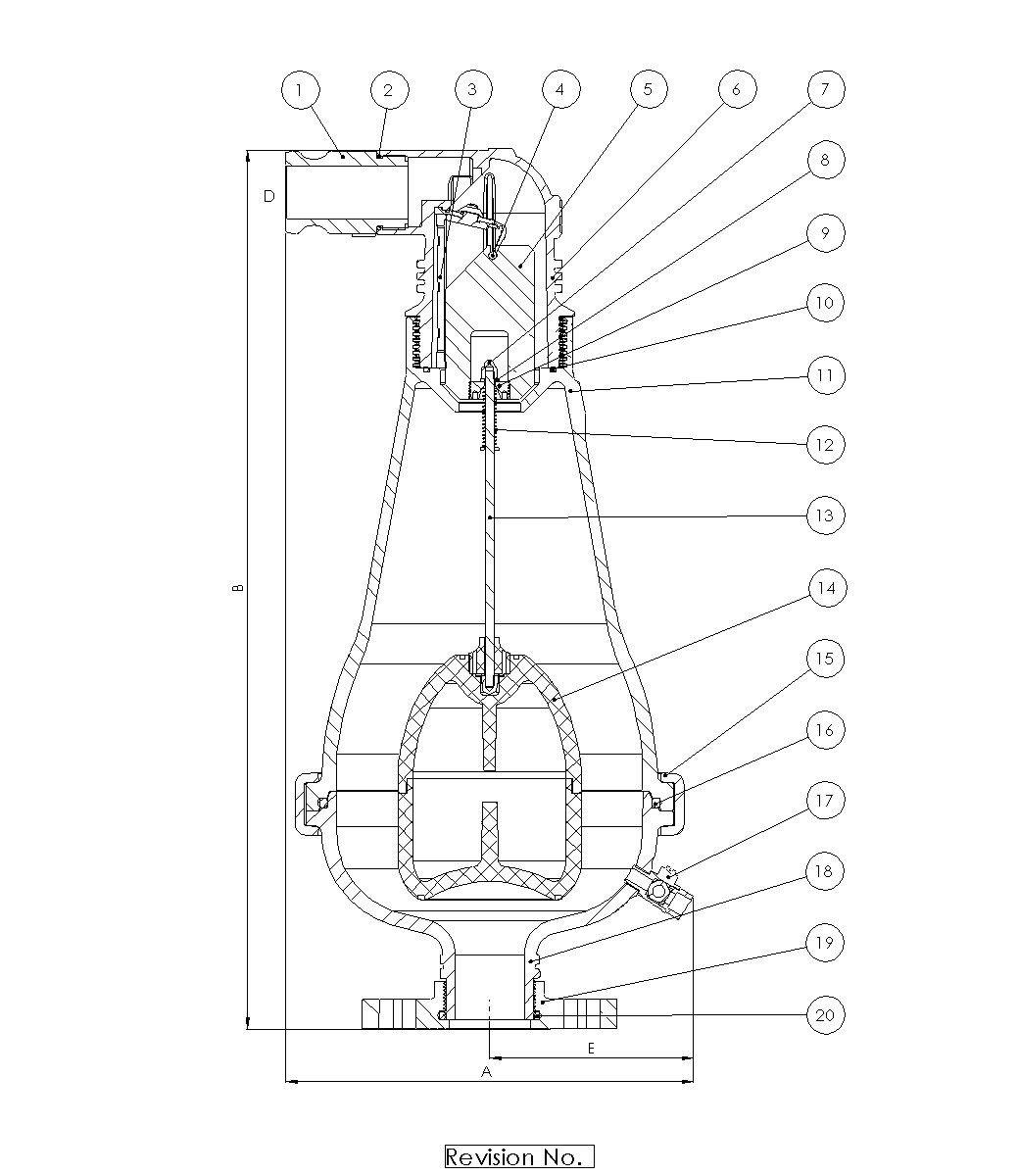

Dimension
263 mm (10.36″)
573 mm (22.57″)
1½″
131 mm (5.16″)
200 mm (7.8″)
25 mm (0.9″)
160 mm (6.3″)
8
Flange Dimensions
|
Specifications
D025L
10 bar (150 psi)
Standard Flow
Flange
Multi Std.
3″
60°C (140°F)
9.5 Kg (20.94 Lbs) ±5%
804 mm² (1.25 Sq.in)
12 mm² (0.018 Sq.in)
|
