Combination Air Valve, D-025L Extended Series



Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Product Code: D25L-I-P16-T2
Configuration Code: NT-LF-NE-MP-ST-PP-OB-SA-CT-RW
  • Configuration
  • Product Details
  • Information
  • Complimentary


Thread Type
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Pressure Release Outlet

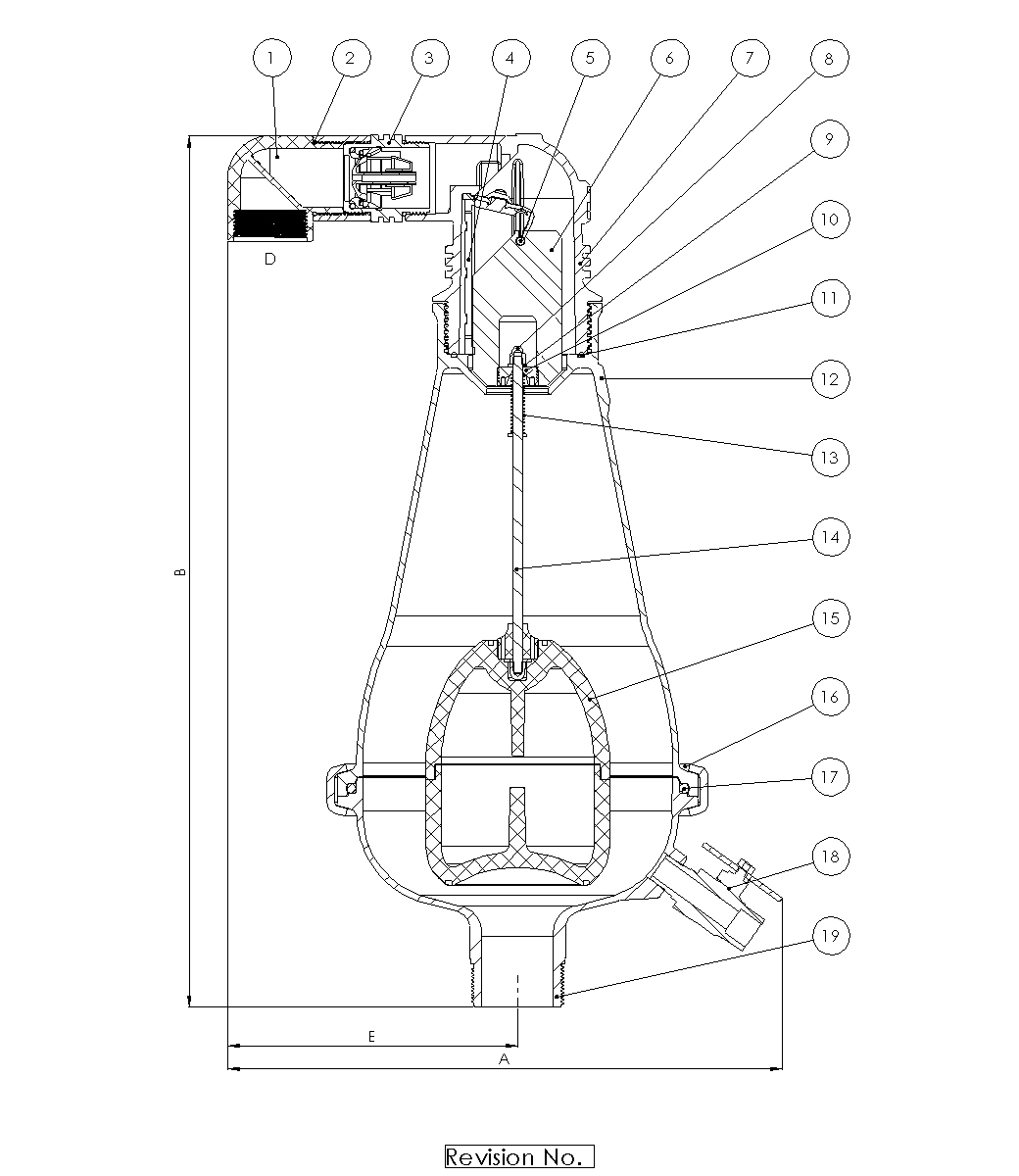

No. Part Material
1 Discharge Outlet Polypropylene
2 O-Ring Buna-N
3 Non slam Polypropylene
4 Clamping Stem Reinforced Nylon
5 Rolling Seal EPDM
6 Float Connector Polypropylene
7 Body Stainless Steel SAE 316
8 Domed Nut Stainless Steel SAE 316
9 Washer Stainless Steel SAE 316
10 Stopper Polypropylene
11 O-Ring Buna-N
12 Body Stainless Steel SAE 316
13 Spring Stainless Steel SAE 316
14 Float Rod Stainless Steel SAE 316
15 Float Polypropylene
16 Clamp Assy Stainless Steel SAE 316
17 O-Ring Buna-N
18 Press. Release Outlet Stainless Steel 316 Ball Valve
19 Base Stainless Steel SAE 316
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Dimension
320 mm (12.60″)
564 mm (22.22″)
1½″
188 mm (7.40″)
1½″
Specifications
D025L
16 bar (250 psi)
One Way - In
Threaded
2″
60°C (140°F)
7.1 Kg (15.65 Lbs) ±5%
804 mm² (1.25 Sq.in)
12 mm² (0.018 Sq.in)
