Dynamic Air Valve, D-070 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

ARI.D070.WTR.CAT.EN.0822.pdf

D070M1.WTR.CAT.ENG02.pdf

D070P.WTR.CAT.ENG04.pdf

ARI.D070Q.WTR.CAT.EN.0822.pdf

D070VB.WTR.CAT.ENG03.pdf

4.IOM.D070.pdf

D-070P-Q_02 17.3.21.pdf

D-070-P 02 17.3.21.pdf

Product Code: ‎D70-V-P16–08V
Configuration Code: A1-LH-ZB-NE-OE-VS-B0-R0-SN
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Valve Body Material
Valve Seat Material
Pilot Valve Body Material
Pilot Valve Seal Material
O-ring Material
Bolt Set Material
Pressure Release Outlet

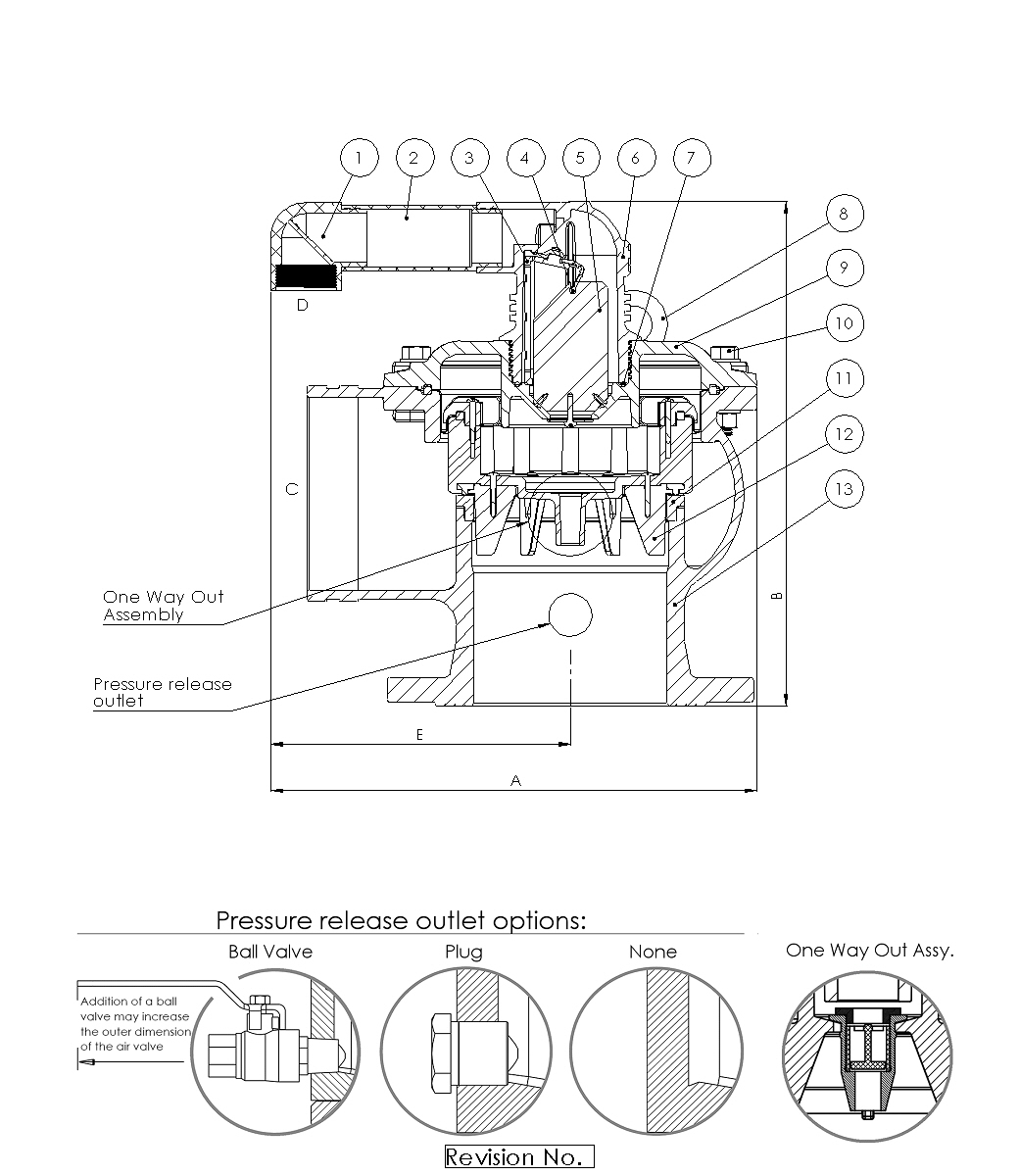

No. Part Material
1 Discharge Outlet Polypropylene
2 Extension Polypropylene
3 Clamping Stem Reinforced Nylon
4 Rolling Seal EPDM
5 Pilot Float Assy. Polypropylene
6 Pilot Body Reinforced Nylon
7 O-Ring EPDM
8 Lifting Ring Steel, Zinc Coated
9 ‎Cover Duct. Iron A536 60–40–18
10 Bolt, Nut & Washer Galvanized Steel
11 Orifice Seat Bronze B62 B271 C83600
12 Rolling Diaphragm Sealing Assy. Reinforced Nylon + E.D.P.M. + St. St. SAE 304 + Fabric
13 Body Duct. Iron A536 60-40-18
14 Press. Release Outlet Without
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Dimension
412.4 mm (16.24″)
454.9 mm (17.92″)
8″
1½″
233 mm (9.18″)
‎13–1/2″ (345 mm)
3/4″ (22.5 mm)
‎11–3/4″ (298.5 mm)
8
Flange Dimensions
Specifications
D070
16 bar (250 psi)
One Way - Out
Flange
ASA 150
60°C (140°F)
66 Kg (145.53 Lbs) ±5%
8″
Victaulic Connection
