Dynamic Air Valve, D-070 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

ARI.D070.WTR.CAT.EN.0822.pdf

D070M1.WTR.CAT.ENG02.pdf

D070P.WTR.CAT.ENG04.pdf

ARI.D070Q.WTR.CAT.EN.0822.pdf

D070VB.WTR.CAT.ENG03.pdf

4.IOM.D070.pdf

D-070P-Q_02 17.3.21.pdf

D-070-P 02 17.3.21.pdf

Product Code: ‎D70-V-P16–12V
Configuration Code: A1-LH-YE-ZB-NE-OE-VS-FA-B0-R0-SN-KB
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Valve Body Material
Valve Seal Material
Valve Seat Material
Pilot Valve Body Material
Pilot Valve Seal Material
O-ring Material
Bolt Set Material
Flushing Assembly
Pressure Release Outlet
Automatic Valve Base Material

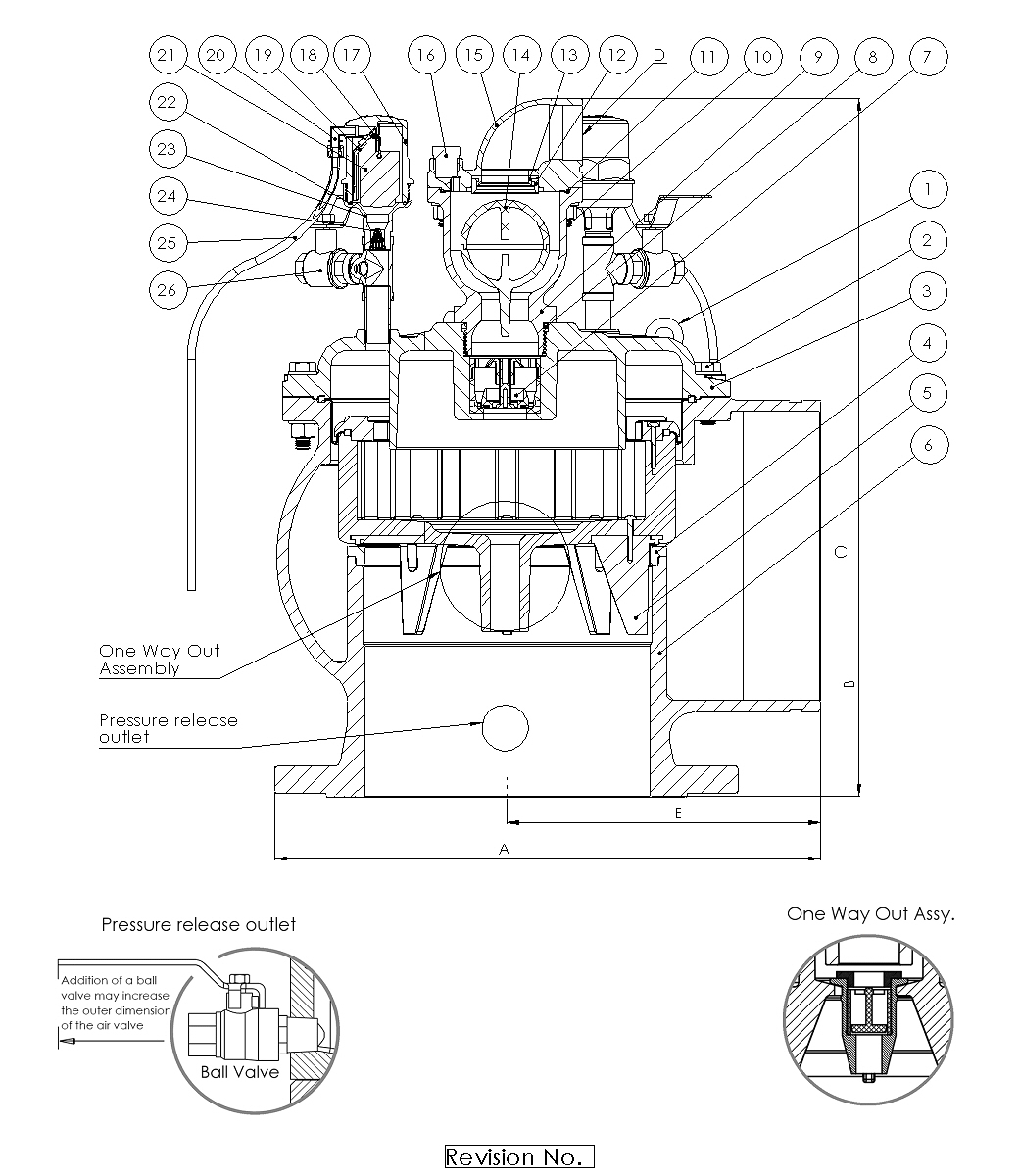

No. Part Material
1 Lifting Ring Steel, Zinc Coated
2 Bolt, Nut & Washer Galvanized Steel
3 ‎Cover Duct. Iron A536 60–40–18
4 Orifice Seat Bronze B62 B271 C83600
5 Rolling Diaphragm Sealing Assy. Reinforced Nylon + E.D.P.M. + St. St. SAE 304 + Fabric
6 Body Duct. Iron A536 60-40-18
7 Internal Check Valve Acetal
8 O-Ring EPDM
9 ‎Pilot Duct. Iron A536 60–40–18
10 Bolt, Nut & Washer Galvanized Steel
11 O-Ring EPDM
12 Orifice Seal EPDM
13 Orifice Seat Bronze B62 B271 C83600
14 Float Polycarbonate
15 ‎Cover Duct. Iron A536 60–40–18
16 Plug Stainles Steel 316
17 Body Reinforced Nylon
18 Rolling Seal EPDM
19 Clamping Stem Reinforced Nylon
20 Air Release Outlet Polypropylene
21 Float Polypropylene
22 O-Ring EPDM
23 Base Brass ASTM B-124
24 Strainer Nylon
25 Tube Polypropylene
26 Flushing Assembly Stainless Steel 316
27 Press. Release Outlet Without
28
29
30
31
32
33
34
35
36
37
38
39
40
Dimension
568.5 mm (22.39″)
723.5 mm (28.50″)
12″
2″
327 mm (12.88″)
485 mm (19″)
25 mm (1″)
431.8 mm (17″)
12
Flange Dimensions
Specifications
D070
16 bar (250 psi)
One Way - Out
Flange
ASA 150
60°C (140°F)
156.5 Kg (345.08 Lbs) ±5%
12″
