Home  Products  Automatic Air Valves (Air Release Valves)  Wastewater (S020/022)  S-025  Working Pressure 10 bar / 150 psi

Automatic Air Release Valve, S-025 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

S025.SWG.CAT.ENG02.pdf

NS.CAT.ENG05.pdf

Product Code: ‎S25-P10–02
Configuration Code: GN-LN-NE-MP-ST-PP-OB-SA-CT-RW-QS
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Clamp
Pressure Release Outlet
Air Release Outlet Type

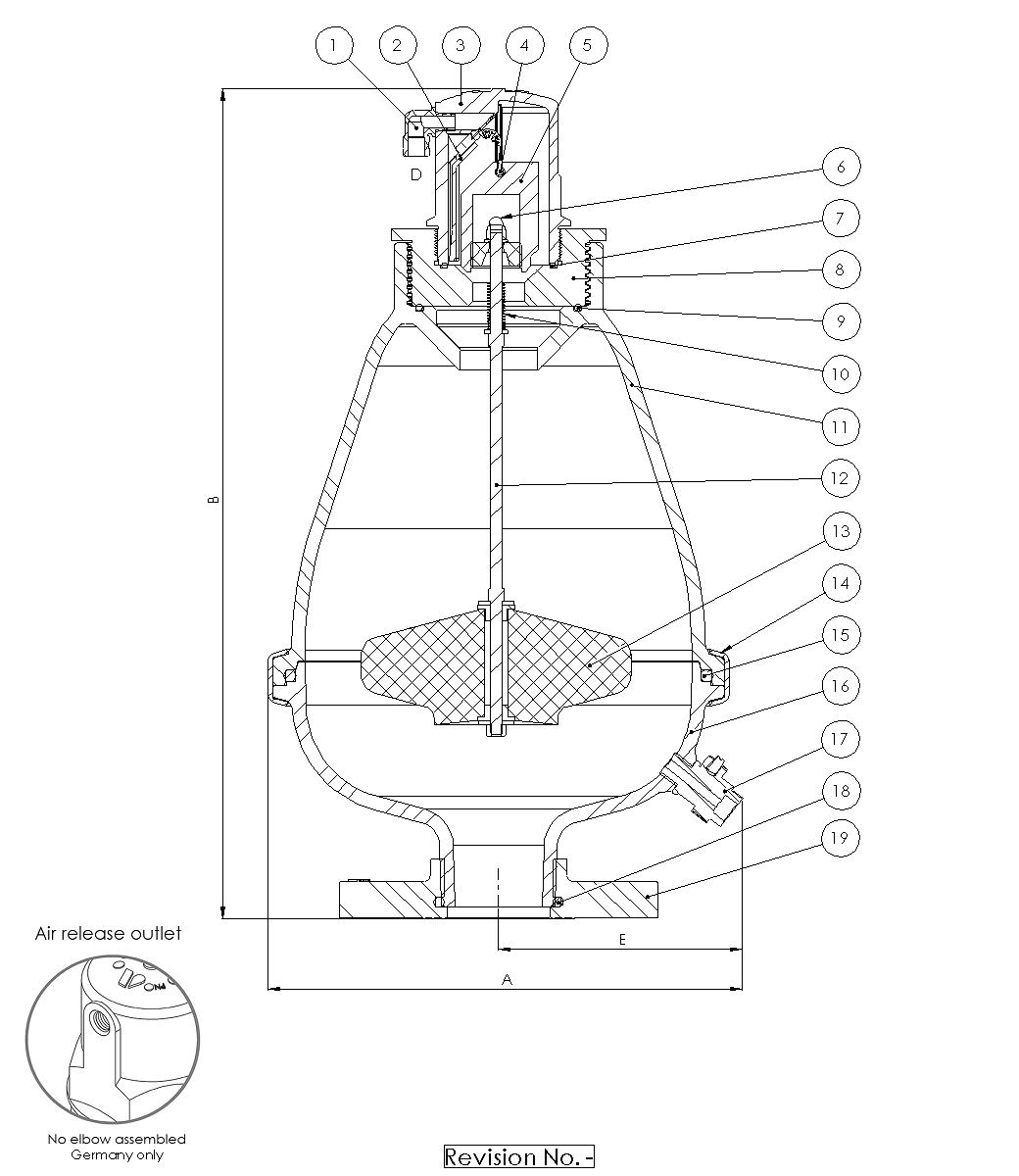

No. Part Material
1 Air Release Outlet Polypropylene, BSPT
2 Clamping Stem Polypropylene
3 Body Reinforced Nylon
4 Rolling Seal EPDM
5 Float Connector Polypropylene
6 Domed Nut Stainless Steel SAE 316
7 O-Ring Buna-N
8 Adaptor Acetal
9 O-Ring Buna-N
10 Spring Stainless Steel SAE 316
11 Body Reinforced Nylon
12 Float Rod Stainless Steel SAE 316
13 Float Polypropylene
14 Clamp Assy Stainless Steel SAE 316
15 O-Ring Buna-N
16 Base Reinforced Nylon
17 Press. Release Outlet Stainless Steel 316 Ball Valve
18 O-Ring Buna-N
19 Flange Reinforced Nylon
20
21
22
23
24
25
26
27
28
29
30
31
32
Dimension
246 mm (9.69″)
430 mm (16.94″)
126 mm (4.96″)
3/8″
165 mm (6.5″)
23.5 mm (0.9″)
119.5 mm (4.7″)
4
Flange Dimensions
Specifications
S025
10 bar (150 psi)
Standard Flow
Flange
Multi Std.
2″
4.4 Kg (9.70 Lbs) ±5%
