Kinetic Air/Vacuum Valves, K-060 Series



Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Product Code: ‎K60-EL-P10–06
Configuration Code: A1-XH-YE-ZB-VS-WP-AS-OB-R0-EP-SP
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Kinetic Valve Body Material
Kinetic Valve Seal Material
Kinetic Valve Seat Material
Kinetic Valve Bolt Set Material
Kinetic Valve Float Material
O-ring Material
Pressure Release Outlet
Vent Connection Material

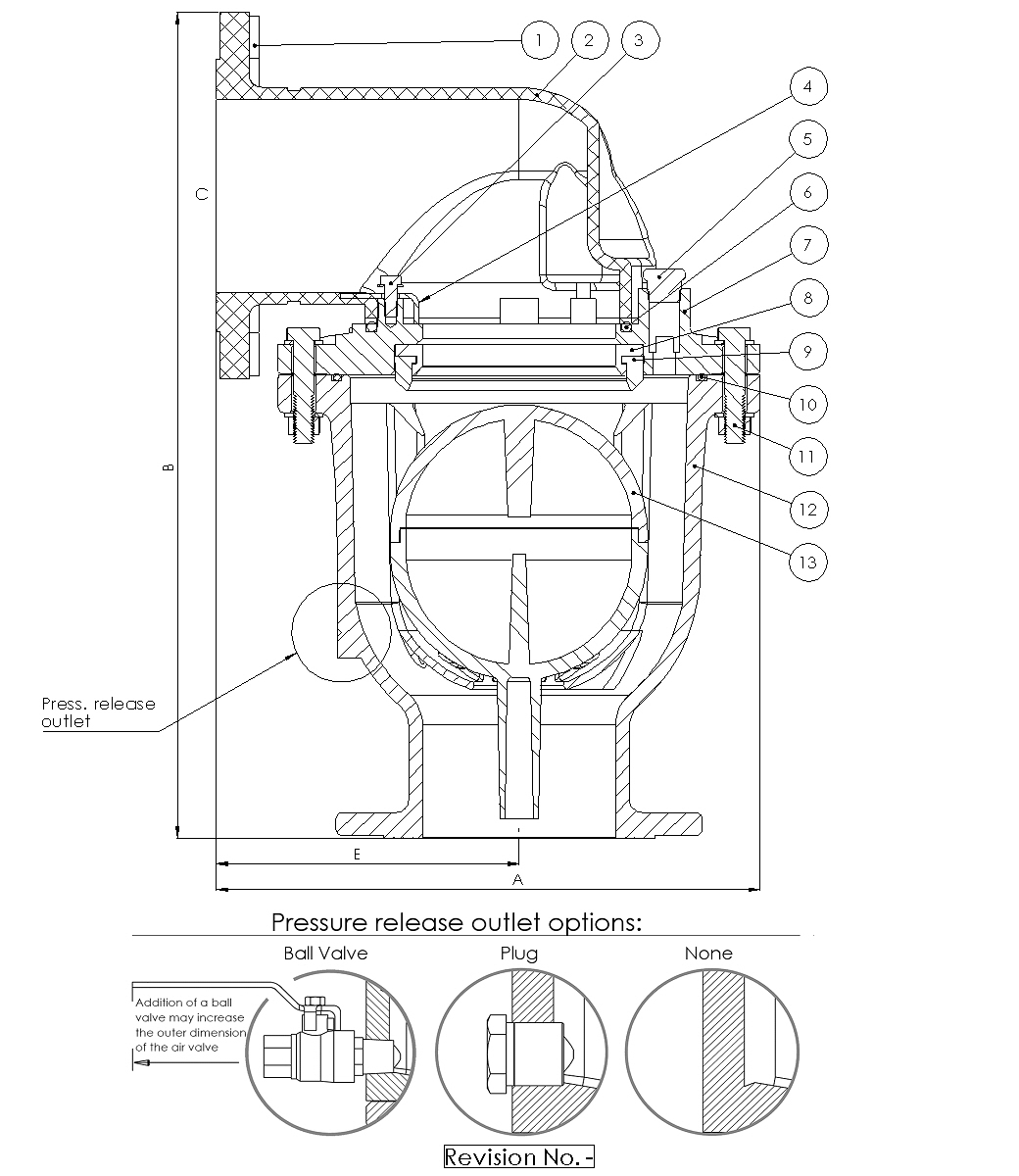

No. Part Material
1 Flange Supports Stainless Steel SAE 316
2 Discharge Elbow Polyethylene
3 Bolt Stainless Steel SAE 316
4 Angle Support Stainless Steel SAE 316
5 Plug Stainless Steel SAE 316
6 O-Ring Buna-N
7 Cover Duct. Iron A536 60-40-18
8 Orifice Seat Bronze B62 B271 C83600
9 Orifice Seal EPDM
10 O-Ring Buna-N
11 Bolt, Nut and Washer Stainless Steel SAE 316
12 Body Duct. Iron A536 60-40-18
13 Float Polycarbonate
14
15
16
17
Dimension
423.5 mm (16.68″)
642.5 mm (25.31″)
6″ (150mm)
236 mm (9.29″)
11″ (280 mm)
3/4″ (22.5 mm)
‎9–1/2″ (241.3 mm)
8
Flange Dimensions
Specifications
K060
10 bar (150 psi)
Standard Flow
Flange
ASA 150
6″
60°C (140°F)
66.4 Kg (146.41 Lbs) ±5%
17662 [mm²]
FBE Blue
