Kinetic Air/Vacuum Valves, K-060 Series



Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Product Code: ‎K60-V-P10–01
Configuration Code: GN-XH-YE-ZB-VS-WP-AO-OB-R0
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Kinetic Valve Body Material
Kinetic Valve Seal Material
Kinetic Valve Seat Material
Kinetic Valve Bolt Set Material
Kinetic Valve Float Material
O-ring Material
Pressure Release Outlet

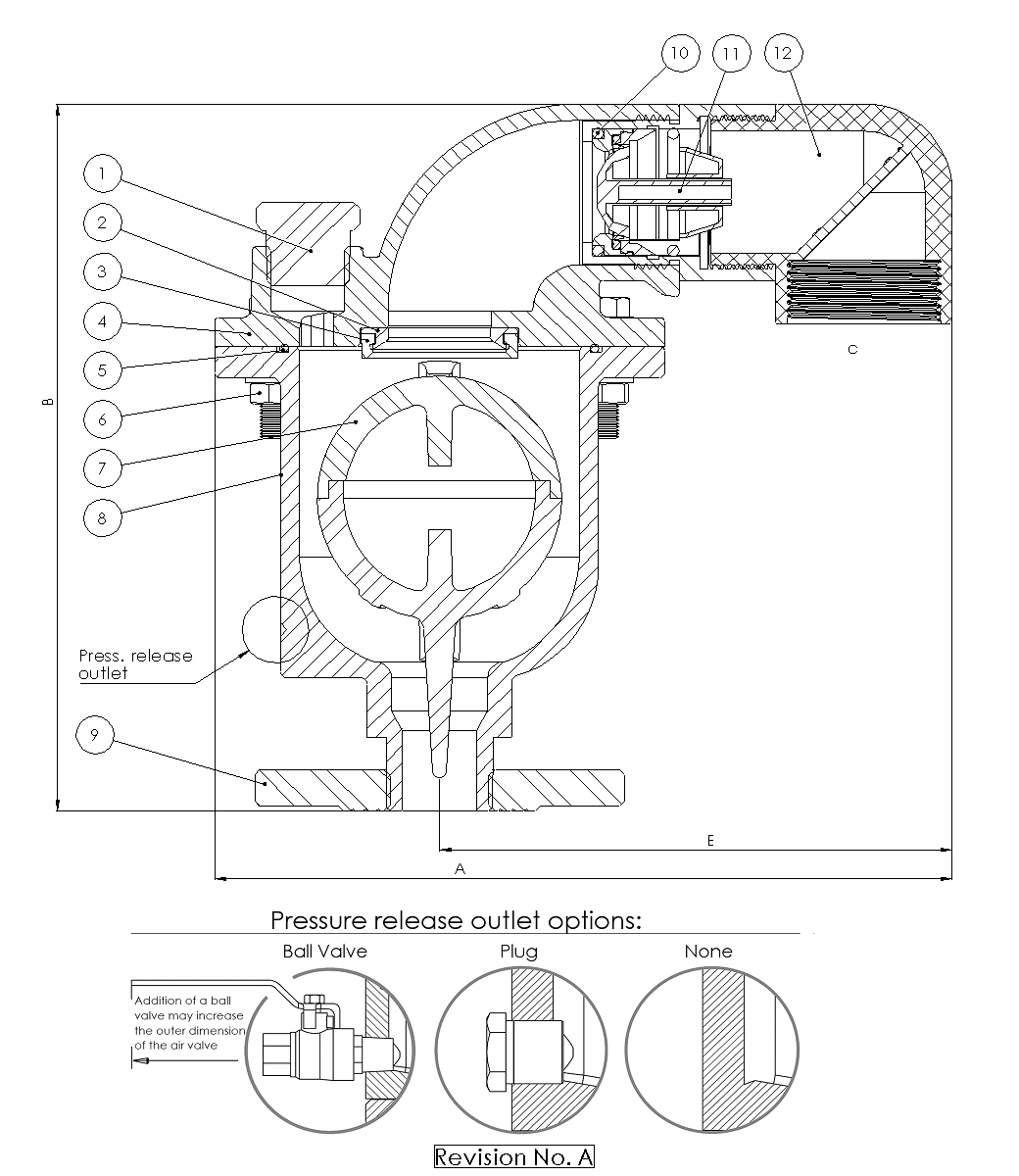

No. Part Material
1 Plug Stainless Steel SAE 316
2 Orifice Seat Bronze B62 B271 C83600
3 Orifice Seal EPDM
4 Cover Duct. Iron A536 60-40-18
5 O-Ring Buna-N
6 Bolt, Nut and Washer Stainless Steel SAE 316
7 Float Polycarbonate
8 Body Duct. Iron A536 60-40-18
9 Flange Ductile Iron
10 O-Ring Buna-N
11 Check Valve Polypropylene
12 Discharge Elbow Polypropylene
13
14
15
16
17
Dimension
221 mm (8.70″)
221 mm (8.70″)
1½″ (38 mm)
155.2 mm (6.11″)
115 mm (4.5″)
19.9 mm (0.7″)
82.1 mm (3.2″)
4
Flange Dimensions
Specifications
K060
10 bar (150 psi)
One Way - Out
Flange
Multi Std.
1″
60°C (140°F)
4.7 Kg (10.36 Lbs) ±5%
506.7 [mm²]
FBE Blue
