Kinetic Air/Vacuum Valves, K-060 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

K060.WTR.CAT.EN03.pdf

K060NS.WTR.CAT.EN01.pdf

ARI.K016.100.WTR.CAT.EN.0822.pdf

NS.CAT.ENG05.pdf

K060_IOM_EN_061021.pdf

Product Code: ‎K60-SE-P10–03
Configuration Code: A1-XH-YE-Z6-VS-WP-AS-OB-R0-EV-SE
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Kinetic Valve Body Material
Kinetic Valve Seal Material
Kinetic Valve Seat Material
Kinetic Valve Bolt Set Material
Kinetic Valve Float Material
O-ring Material
Pressure Release Outlet
Vent Connection Material

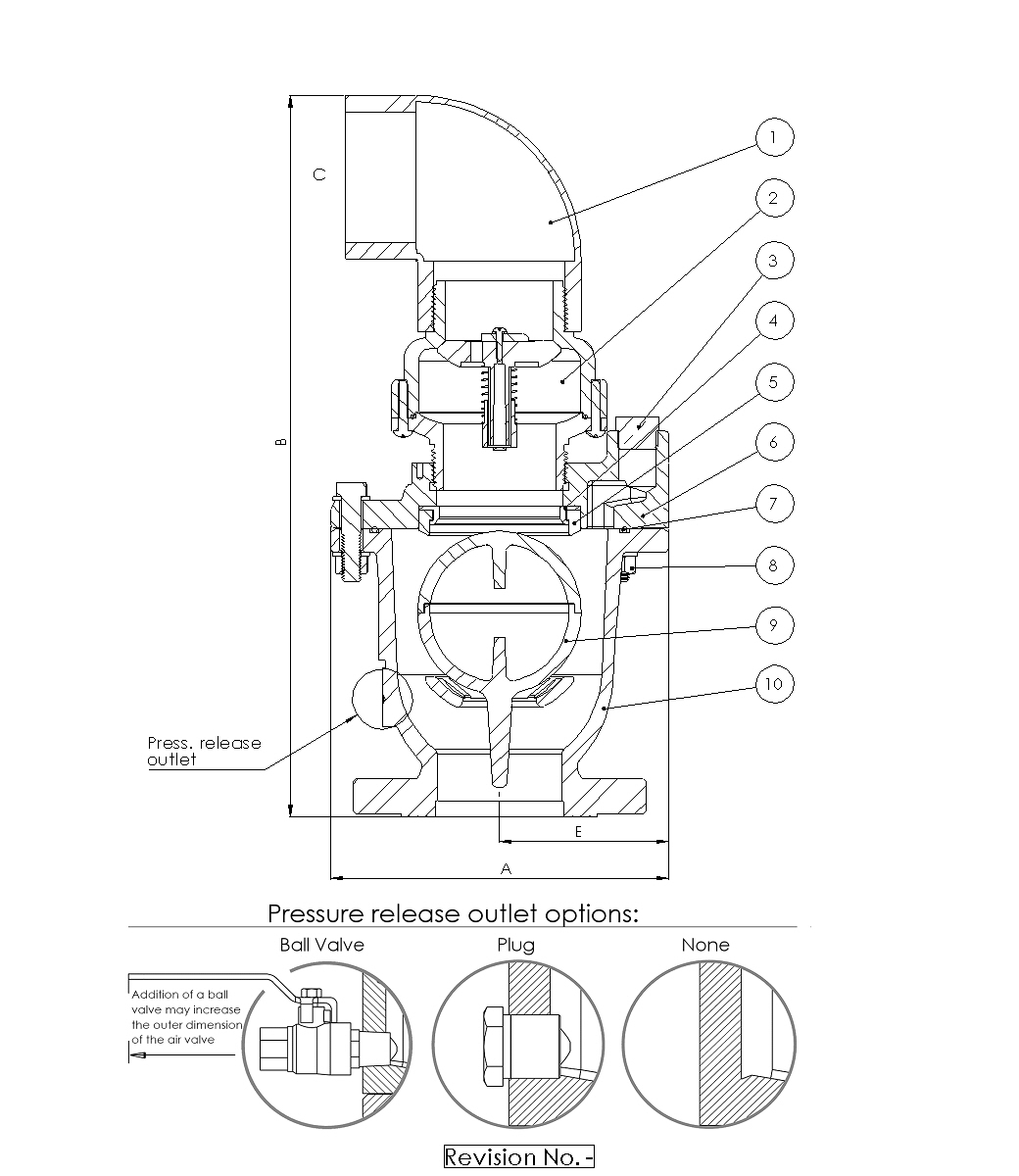

No. Part Material
1 Discharge Elbow Polypropylene
2 Check Valve Polypropylene
3 Plug Stainless Steel SAE 316
4 Orifice Seat Stainless Steel SAE 316
5 Orifice Seal EPDM
6 Cover Duct. Iron A536 60-40-18
7 O-Ring Buna-N
8 Bolt, Nut and Washer Stainless Steel SAE 316
9 Float Polycarbonate
10 Body Duct. Iron A536 60-40-18
11
12
13
14
15
16
17
Dimension
219 mm (8.62″)
467 mm (18.39″)
3″ (80mm)
109 mm (4.29″)
‎7–1/2″ (190 mm)
5/8″ (19 mm)
6″ (152.4 mm)
4
Flange Dimensions
Specifications
K060
10 bar (150 psi)
Non Slam
Flange
ASA 150
3″
60°C (140°F)
18.7 Kg (41.23 Lbs) ±5%
5030 [mm²]
FBE Blue
