Automatic Air Valve, S-020HCVB Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

S020HCVB.SWG.CAT02.pdf

NS.CAT.ENG05.pdf

Product Code: ‎S20VB-P16–04
Configuration Code: GN-LH-NE-OB-SA-MP-RW-QS-VS-Q9
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Body Material
Seal Material
Float Spring Material
Valve Bolt Set Material
O-ring Material
Pressure Release Outlet
Air Release Outlet Type
Float Material
Air Intake Outlet Type


No. Part Material
1 Air Release Outlet Polypropylene, BSPT
2 Nipple Brass
3 Bolt, Nut & Washer Galvanized Steel
4 O-Ring Buna-N
5 Cover Duct. Iron A536 60-40-18
6 O-Ring Buna-N
7 Air Release Orifice Reinforced Nylon
8 Rollpin Stainless Steel SAE 304
9 Lever Reinforced Nylon
10 Rolling Seal EPDM
11 Float Polypropylene
12 Body Duct. Iron A536 60-40-18
13 Press. Release Outlet Stainless Steel 316 Ball Valve
14 Air Intake Outlet Polypropylene, NPT
15 Domed Nut & Washers Galvanized Steel
16 Spring Stainless Steel SAE 316
17 Orifice Seat Reinforced Nylon
18 Domed Nut & Washers Galvanized Steel
19
20
21
22
23
24
25
26
27
28
29
30
31
32

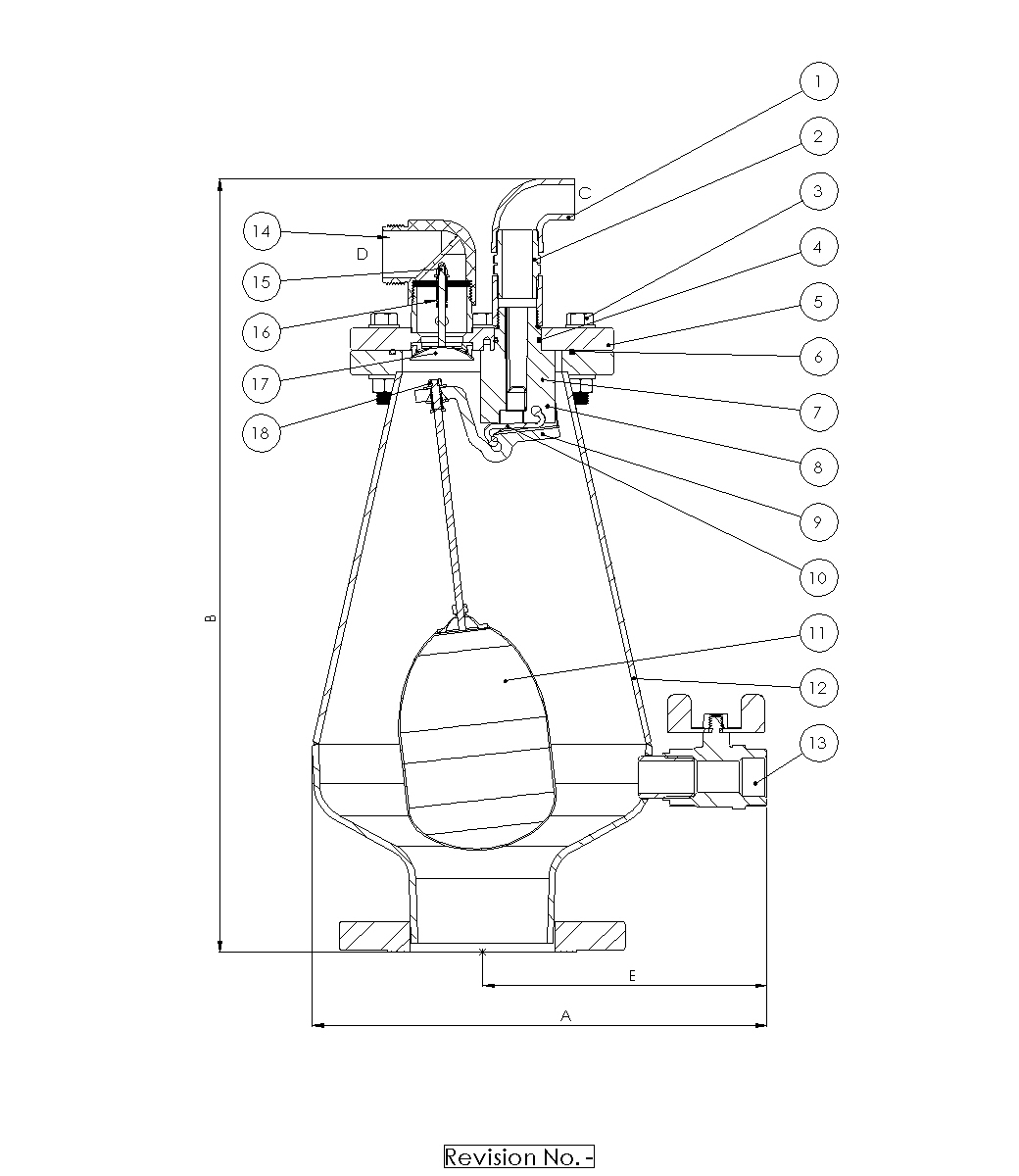

Dimension
365 mm (14.38″)
622 mm (24.50″)
229 mm (11.78″)
228 mm (8.9″)
24.35 mm (0.9″)
184 mm (7.2″)
8
Flange Dimensions
Specifications
16 bar (250psi)
One Way - In
Flange
Multi Std.
4″
18.6 Kg (41.01 Lbs)
