Combination Air Valve, D-040L Series
Product Code: D40L-V-LP6-T2
Configuration Code: NT-LN-KN-NC-OB-R0-QS
Configuration Code: NT-LN-KN-NC-OB-R0-QS
- Configuration
- Product Details
- Information
- Complimentary
Thread Type
Body Material
Seal Material
O-ring Material
Pressure Release Outlet
Discharge Outlet Type
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

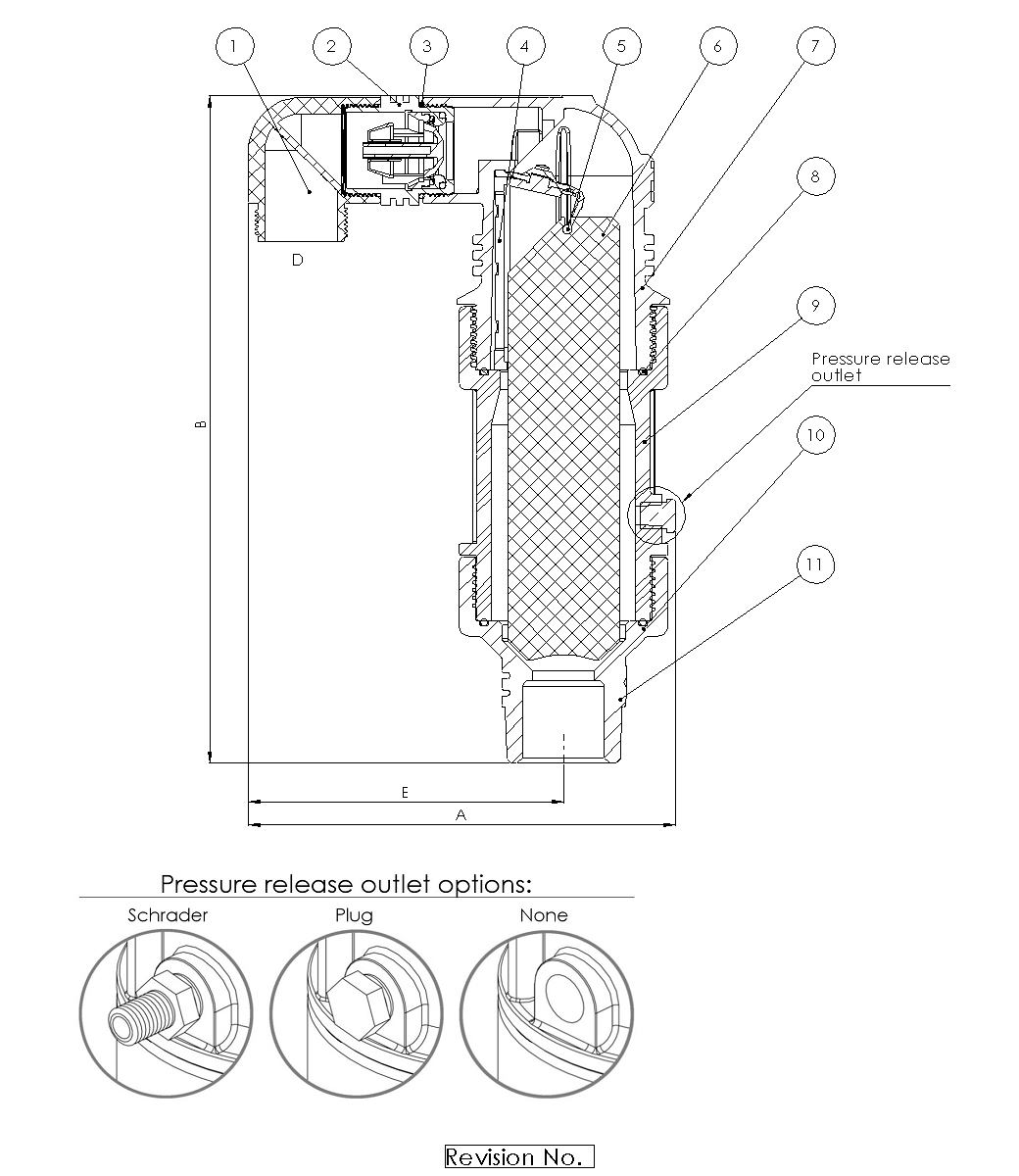

Dimension
221.5 mm (8.72″)
346 mm (13.63″)
163.5 mm (6.44″)
1½″
|
Specifications
D40L
6 bar (90 psi)
One Way - Out
Composite Plastic
Threaded
2″
None
2.2 kg (4.85 Lbs) ±3%
12 mm² (0.018 Sq.in)
804 mm² (1.246 Sq.in)
|
