Combination Air Valve, D-040L Series
Product Code: D40L-NS-LP6–02-TP
Configuration Code: GN-FN-LN-KN-NC-OB-R0-S6-QS
Configuration Code: GN-FN-LN-KN-NC-OB-R0-S6-QS
- Configuration
- Product Details
- Information
- Complimentary
Flange Standard
Flange Material
Body Material
Seal Material
O-ring Material
Pressure Release Outlet
Shut-off Valve Material
Discharge Outlet Type
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

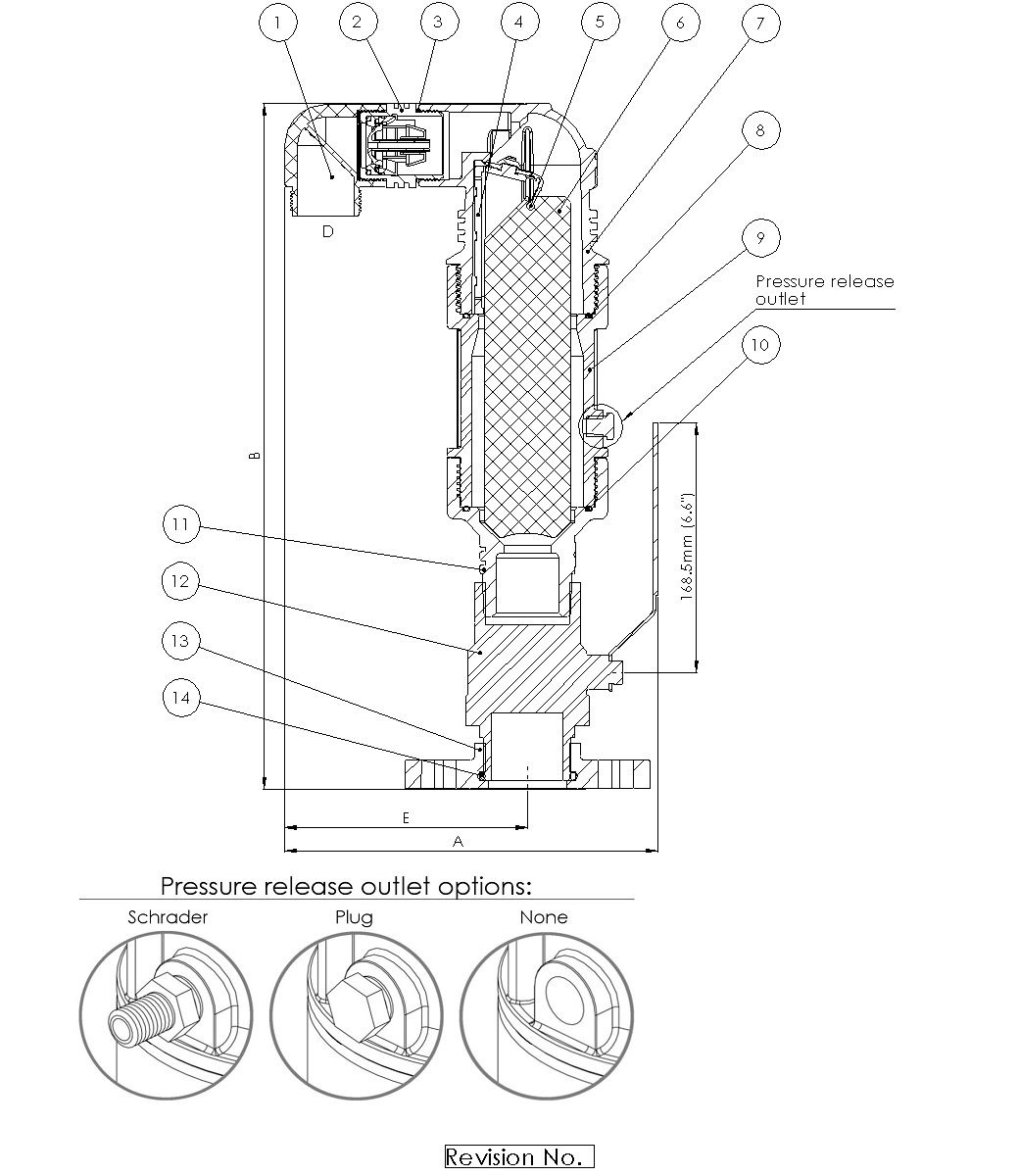

Dimension
251.5 mm (9.90″)
462 mm (18.20″)
163.5 mm (6.44″)
1½″
165 mm (6.5″)
23.5 mm (0.9″)
119.5 mm (4.7″)
4
Flange Dimensions
|
Specifications
D40L
6 bar (90 psi)
Non Slam
Composite Plastic
Flange
2″
Shutoff Valve
5.9 kg (13 Lbs) ±3%
12 mm² (0.018 Sq.in)
804 mm² (1.246 Sq.in)
|
