Combination Air Valve, D-43 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

ARI.D43.WTR.CAT.EN.0822

ENM D- 43-2 .pdf

D43.AGR.CAT.EN07.pdf

D-43 IOM ENG 01.pdf

Product Code: ‎D43-P10–06
Configuration Code: A1-LI-YE-VS-MF-OB-QS-R0
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Body Material
Seal Material
Bolt Set Material
Assembly Float Material
O-ring Material
Discharge Outlet
Pressure Release Outlet

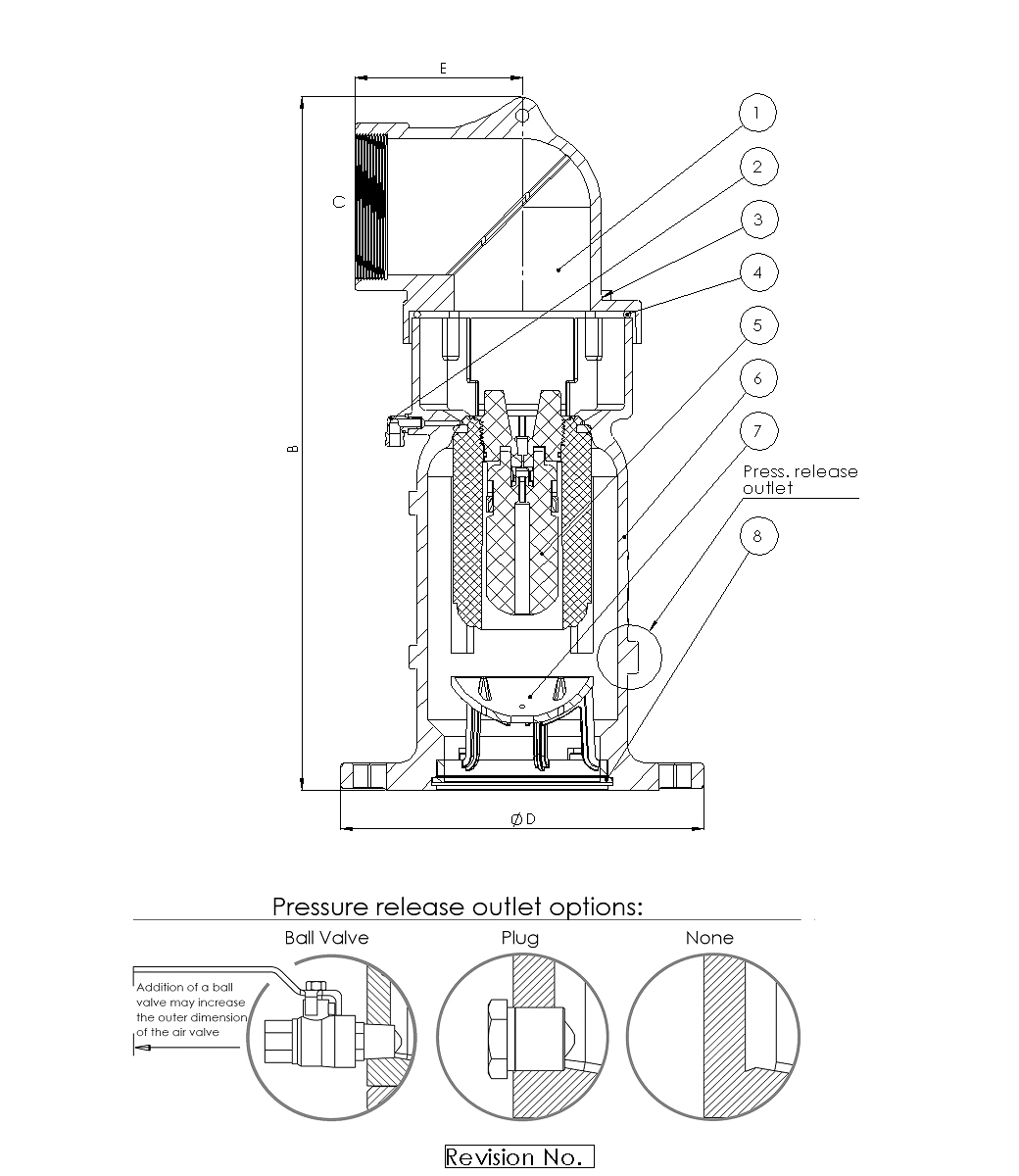

No. Part Material
1 Discharge Outlet Polypropylene
2 Drain Elbow Polypropylene
3 Screw, Nut & Washer Stainless Steel SAE 316
4 O-Ring Buna-N
5 Float / Seal Assembly * detailed below
6 Body Duct. Iron A536 65-45-12
7 Float Seat Acetal
8 Snap Ring Acetal
9 Press. Release Outlet Without
10 * Assy: Float Polypropylene
11 * Assy: Sealing Head Acetal
12 * Assy: Rolling Seal EPDM
13 * Assy: Seal Material EPDM
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Dimension
539.8 mm (21.26″)
152.5 mm (6″)
4″
11″ (280 mm)
3/4″ (22.5 mm)
‎9–1/2″ (241.3 mm)
8
Flange Dimensions
Specifications
D043
10 bar (150 psi)
Flange
ASA 150
Flat Face
6″
60°C (140°F)
25.55 Kg (56.33 Lbs) ±5%
7854 mm² (12.17 Sq.in)
13 mm² (0.020 Sq.in)
