Combination Air Valve, D-025 Compact Series
Product Code: D25-V-P10–02
Configuration Code: GN-LF-NE-MP-ST-PP-OB-SA-CT-RW
Configuration Code: GN-LF-NE-MP-ST-PP-OB-SA-CT-RW
- Configuration
- Product Details
- Information
- Complimentary
Flange Standard
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Clamp
Pressure Release Outlet
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

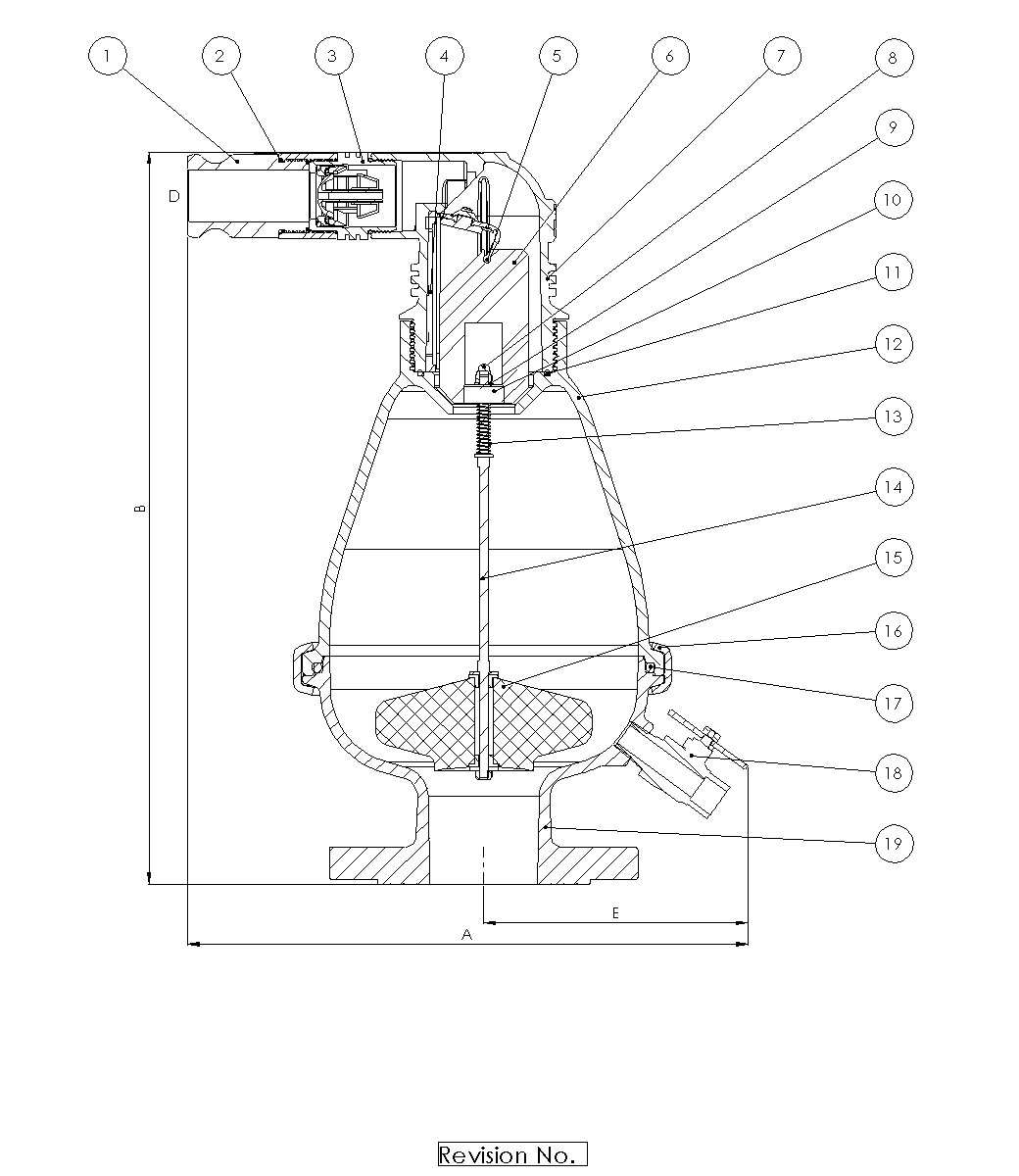

Dimension
363 mm (14.29″)
474.8 mm (18.69″)
192 mm (7.56″)
1½″
165 mm (6.5″)
23.5 mm (0.9″)
119.5 mm (4.7″)
4
Flange Dimensions
|
Specifications
D025
10 bar (150 psi)
One Way - Out
Flange
Multi Std.
2″
60°C (140°F)
19.6 Kg (43.21 Lbs) ±5%
804 mm² (1.25 Sq.in)
12 mm² (0.019 in²)
|
