Combination Air Valve, D-025 Compact Series
Product Code: D25-NS-P10-T2
Configuration Code: NT-LF-NE-MP-ST-PP-OB-SA-CT-RW
Configuration Code: NT-LF-NE-MP-ST-PP-OB-SA-CT-RW
- Configuration
- Product Details
- Information
- Complimentary
Thread Type
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Clamp
Pressure Release Outlet
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

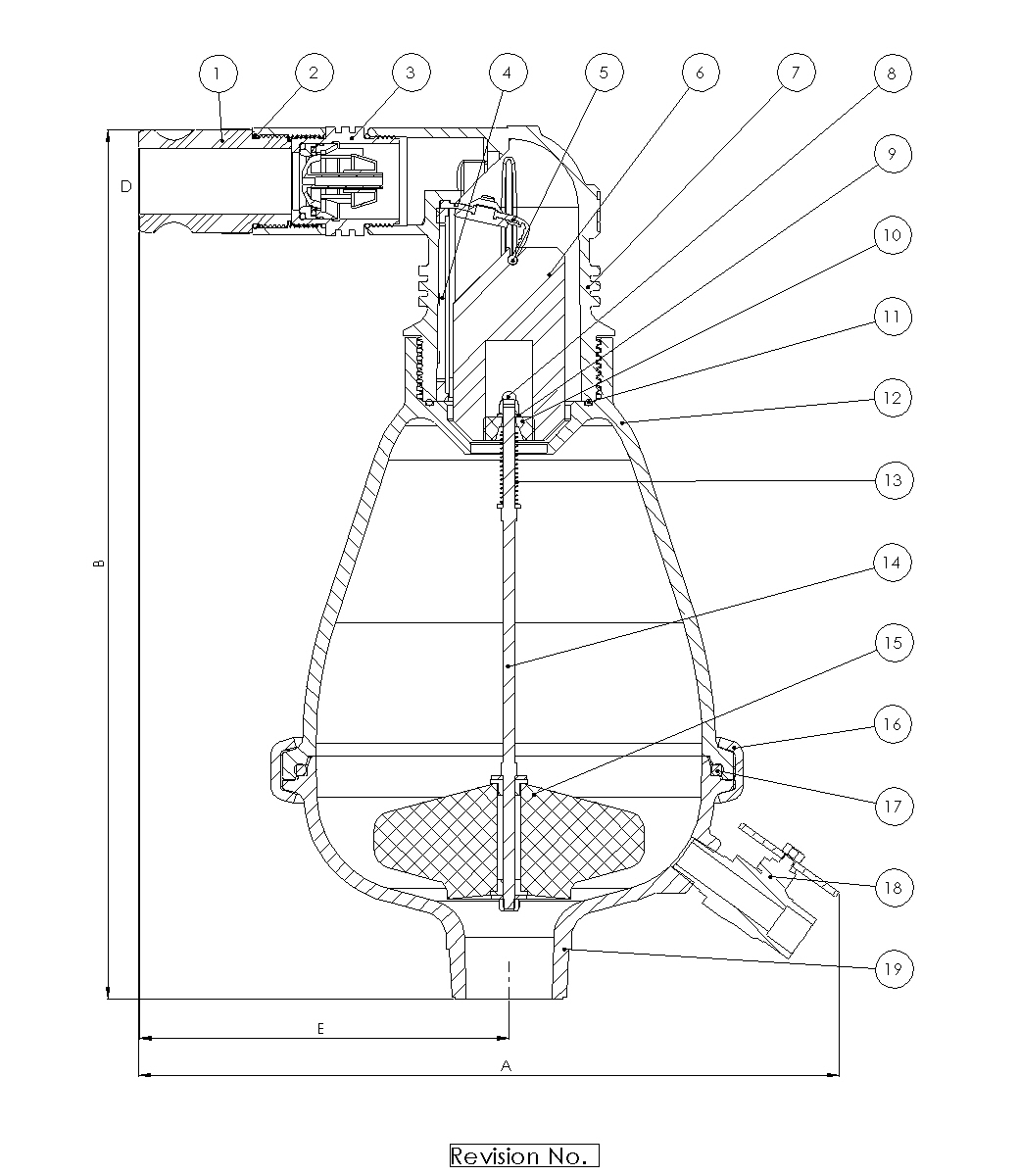

Dimension
303 mm (11.93″)
451 mm (17.76″)
171 mm (6.73″)
1½″
|
Specifications
D025
10 bar (150 psi)
Non Slam
Threaded
2″
60°C (140°F)
13.7 Kg (30.2 Lbs) ±5%
804 mm² (1.25 Sq.in)
12 mm² (0.019 in²)
|
No complementary products found.
