Combination Air Valve, D-025L Extended Series
Product Code: D25L-NS-P16–04
Configuration Code: GN-LF-NE-MP-ST-PP-OB-SA-CT-RW
Configuration Code: GN-LF-NE-MP-ST-PP-OB-SA-CT-RW
- Configuration
- Product Details
- Information
- Complimentary
Flange Standard
Body Material
Seal Material
Float Material
Float Rod Material
Float Spring Material
Stopper
O-ring Material
Pressure Release Outlet
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

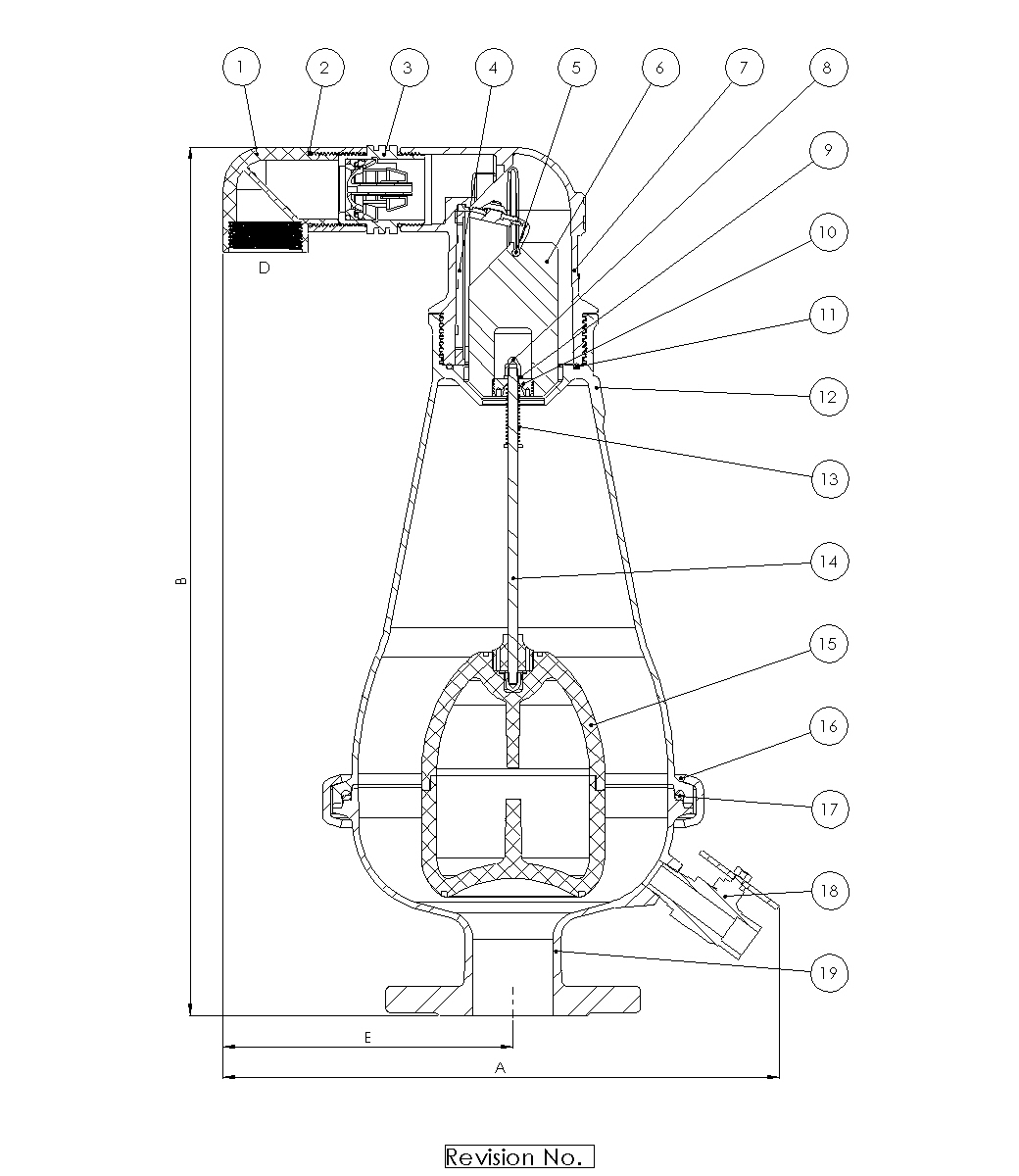

Dimension
359 mm (14.14″)
564 mm (22.22″)
1½″
188 mm (7.40″)
228 mm (8.9″)
24.35 mm (0.9″)
184 mm (7.2″)
8
Flange Dimensions
|
Specifications
D025L
16 bar (250 psi)
Non Slam
Flange
Multi Std.
4″
60°C (140°F)
19.5 Kg (42.99 Lbs) ±5%
804 mm² (1.25 Sq.in)
12 mm² (0.018 Sq.in)
|
