Home  Products  Vacuum Breaker  Water Supply / Wastewater  VB-060  Working Pressure 16 bar / 250 psi

VB-060

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

VB060.WTR.CAT.EN04.pdf

VB060.SWG.CAT.ENG03.pdf

VB060.WTR.CAT.US03.pdf

Product Code: ‎VB60-P16–24–01
Configuration Code: A1-LH-OB
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Kinetic Valve Body Material
O-ring Material

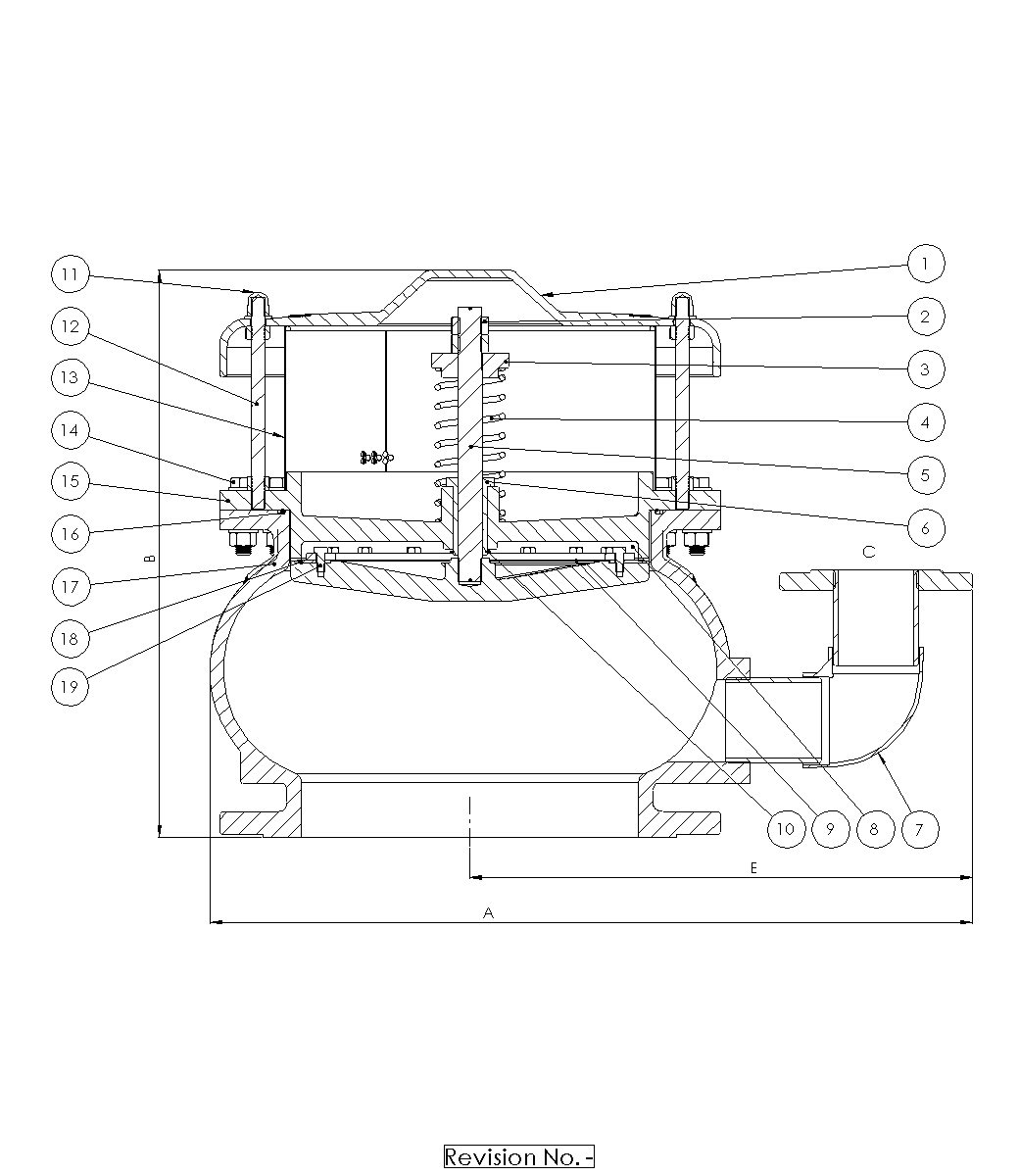

No. Part Material
1 ‎Screen Cover Duct. Iron A536 60–40–18
2 Nut Stainless Steel SAE 304
3 Spring Lock Stainless Steel SAE 304
4 Spring Stainless Steel SAE 304
5 Guide Pin Stainless Steel SAE 304
6 Cover Bearing Bronze B62 B271 C83600
7 Flanged Ext. Stainless Steel SAE 316
8 Retainer Stainless Steel SAE 304
9 ‎Disc Duct. Iron A536 60–40–18
10 Circlip Stainless Steel SAE 304
11 Domed Nut & Washer Stainless Steel SAE 304
12 Threaded Rod Stainless Steel SAE 304
13 Screen Stainless Steel SAE 304
14 Bolt, Nut & Washer Stainless Steel SAE 316
15 ‎Cover Duct. Iron A536 60–40–18
16 O-Ring Buna-N
17 ‎Body Duct. Iron A536 60–40–18
18 Rubber Seal EPDM
19 Bolt Stainless Steel SAE 316
Dimension
1141 mm (44.95″)
1035 mm (40.77″)
1″
682 mm (26.87″)
815 mm (32″)
35 mm (1.375″)
749 mm (29.5″)
20
Flange Dimensions
Specifications
VB-060
16 bar (250 psi)
One Way - In
Flange
ASA 150
24″
675.25 Kg (1488.92 Lbs) ±5%
