Home  Products  Vacuum Breaker  Water Supply / Wastewater  VB-060  Working Pressure 16 bar / 250 psi

VB-060

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

VB060.WTR.CAT.EN04.pdf

VB060.SWG.CAT.ENG03.pdf

VB060.WTR.CAT.US03.pdf

Product Code: ‎VB60-P16–12
Configuration Code: A1-LH-OB
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Kinetic Valve Body Material
O-ring Material

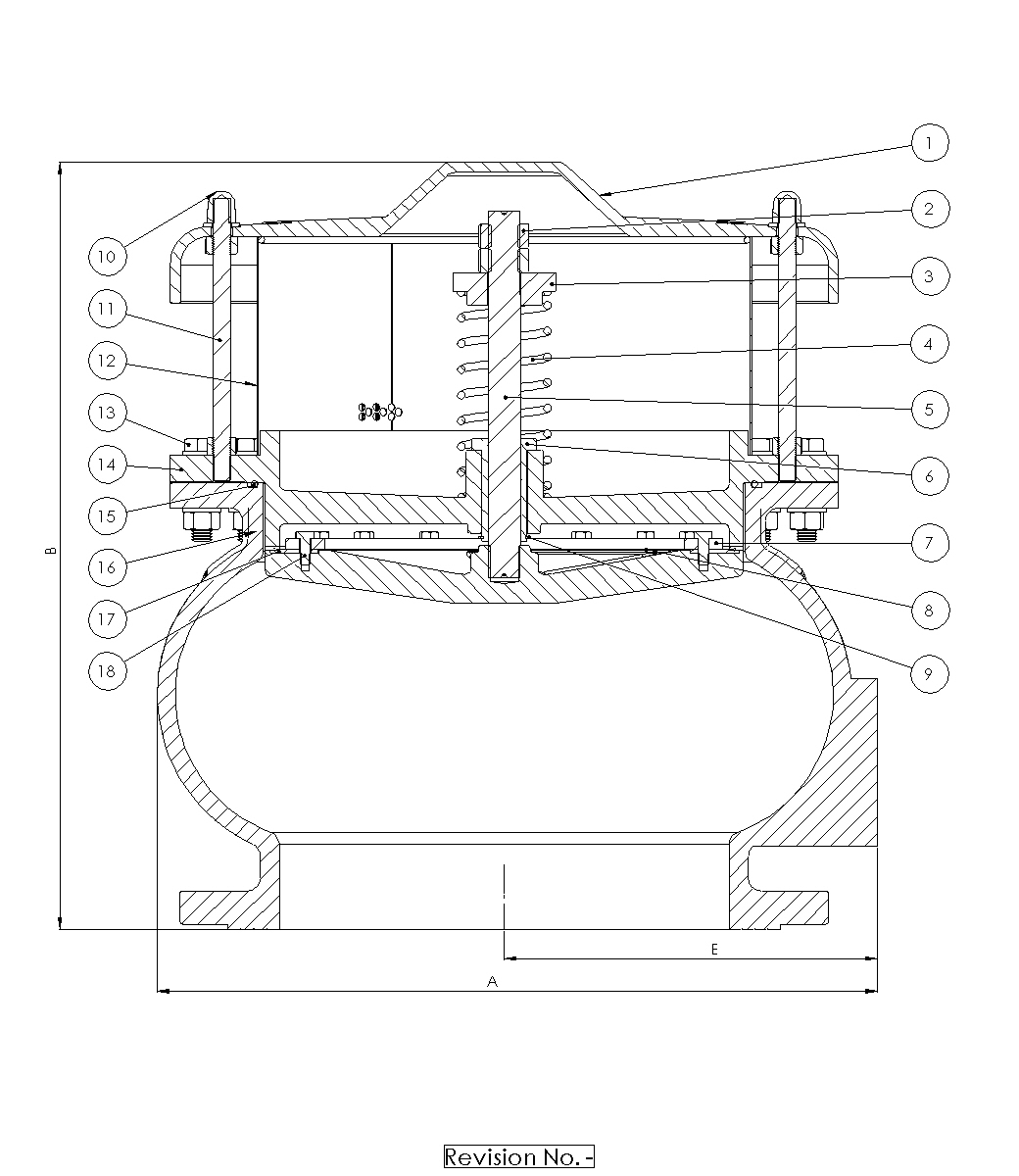

No. Part Material
1 ‎Screen Cover Duct. Iron A536 60–40–18
2 Nut Stainless Steel SAE 304
3 Spring Lock Stainless Steel SAE 304
4 Spring Stainless Steel SAE 304
5 Guide Pin Stainless Steel SAE 304
6 Cover Bearing Bronze B62 B271 C83600
7 Retainer Stainless Steel SAE 304
8 ‎Disc Duct. Iron A536 60–40–18
9 Circlip Stainless Steel SAE 304
10 Domed Nut & Washer Stainless Steel SAE 304
11 Threaded Rod Stainless Steel SAE 304
12 Screen Stainless Steel SAE 304
13 Bolt, Nut & Washer Stainless Steel SAE 316
14 ‎Cover Duct. Iron A536 60–40–18
15 O-Ring EPDM
16 ‎Body Duct. Iron A536 60–40–18
17 Rubber Seal EPDM
18 Bolt Stainless Steel SAE 316
19
Dimension
468 mm (18.43″)
519 mm (20.44″)
240 mm (9.45″)
485 mm (19″)
25 mm (1″)
431.8 mm (17″)
12
Flange Dimensions
Specifications
VB-060
16 bar (250 psi)
One Way - In
Flange
ASA 150
12″
115.03 Kg (253.64 Lbs) ±5%
No complementary products found.
