ARI Air Valves Working Pressure 16 bar / 250 psi ‎VB60-P16

VB-060

click to enlarge

Price:

Quantity:

Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

VB060.WTR.CAT.EN04.pdf

VB060.SWG.CAT.ENG03.pdf

VB060.WTR.CAT.US03.pdf

Product Code: ‎VB60-P16–24-T3
Configuration Code: A1-LH-OB

Configuration
Product Details
Information
Complimentary

Flange Standard

ASA 150

DIN 10

DIN 16

Kinetic Valve Body Material

Ductile Iron

O-ring Material

Buna-N

EPDM

Viton

Auxiliary Thread Type

St. St. 316, BSPT

St. St. 316, NPT

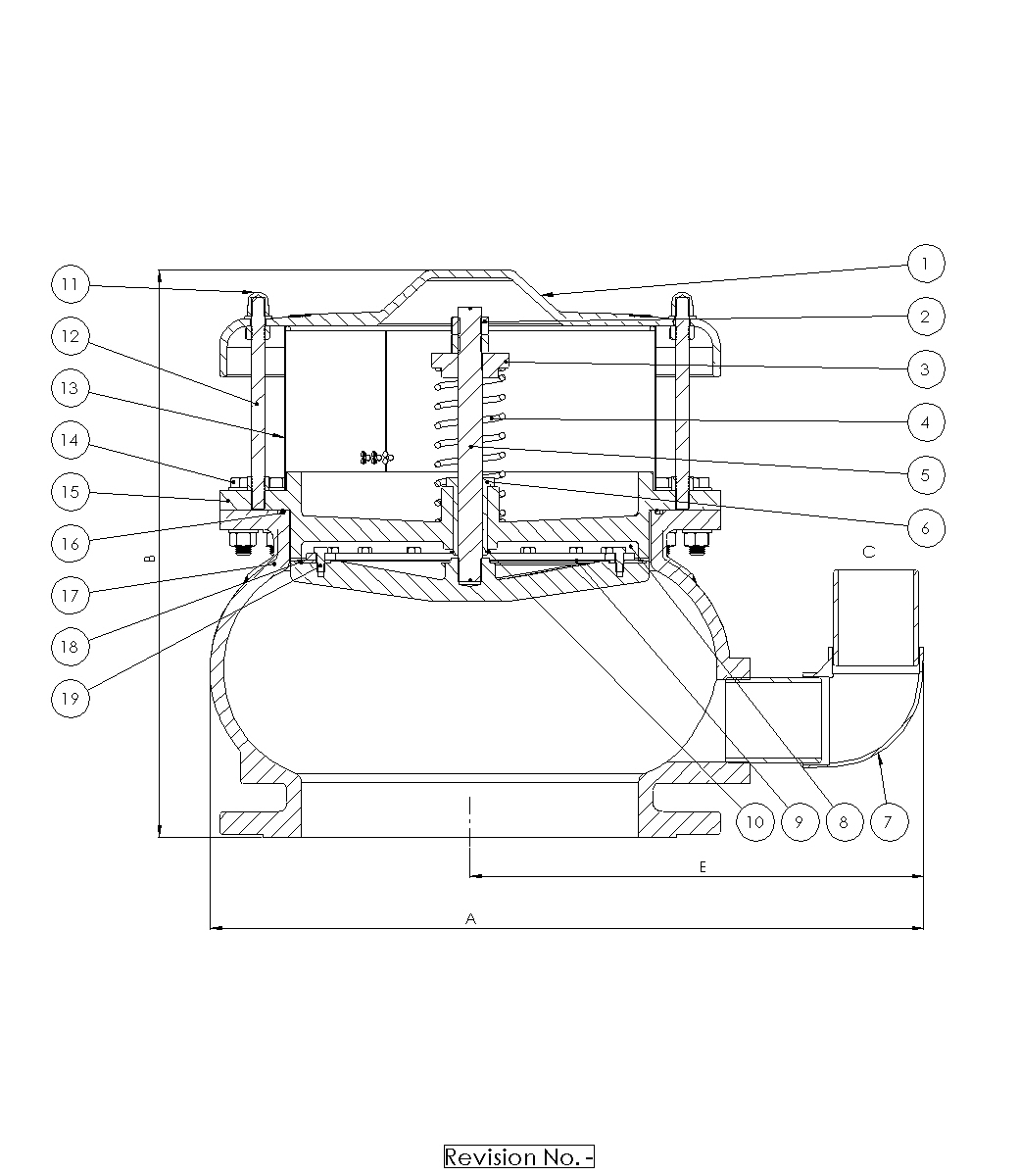

No.		Part		Material


1	‎Screen Cover	Duct. Iron A536 60–40–18
2	Nut	Stainless Steel SAE 304
3	Spring Lock	Stainless Steel SAE 304
4	Spring	Stainless Steel SAE 304
5	Guide Pin	Stainless Steel SAE 304
6	Cover Bearing	Bronze B62 B271 C83600
7	Threaded Ext.	Stainless Steel SAE 316
8	Retainer	Stainless Steel SAE 304
9	‎Disc	Duct. Iron A536 60–40–18
10	Circlip	Stainless Steel SAE 304
11	Domed Nut & Washer	Stainless Steel SAE 304
12	Threaded Rod	Stainless Steel SAE 304
13	Screen	Stainless Steel SAE 304
14	Bolt, Nut & Washer	Stainless Steel SAE 316
15	‎Cover	Duct. Iron A536 60–40–18
16	O-Ring	Buna-N
17	‎Body	Duct. Iron A536 60–40–18
18	Rubber Seal	EPDM
19	Bolt	Stainless Steel SAE 316

click to enlarge

Dimension

A 1093 mm (43.06″)

B 1035 mm (40.77″)

C 3″

E 633 mm (24.94″)

ØD 815 mm (32″)

ØG 35 mm (1.375″)

ØK 749 mm (29.5″)

Holes 20

Flange Dimensions

Specifications

Series VB-060

Working Pressure 16 bar (250 psi)

Valve Type One Way - In

Connection Type Flange

Flange Standard ASA 150

Connection Size 24″

Weight 671.83 Kg (1481.38 Lbs) ±5%
