Combination Air Valve, S-050L Series
Product Code: S50SL-P16–50-TP
Configuration Code: GN-FF-LF-CS-NE-OB-R0-S6-QS-VS
Configuration Code: GN-FF-LF-CS-NE-OB-R0-S6-QS-VS
- Configuration
- Product Details
- Information
- Complimentary
Flange Standard
Body Material
Flange Material
Cover Material
Seal Material
O-ring Material
Shut-off Valve Material
Air Release Outlet Type
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

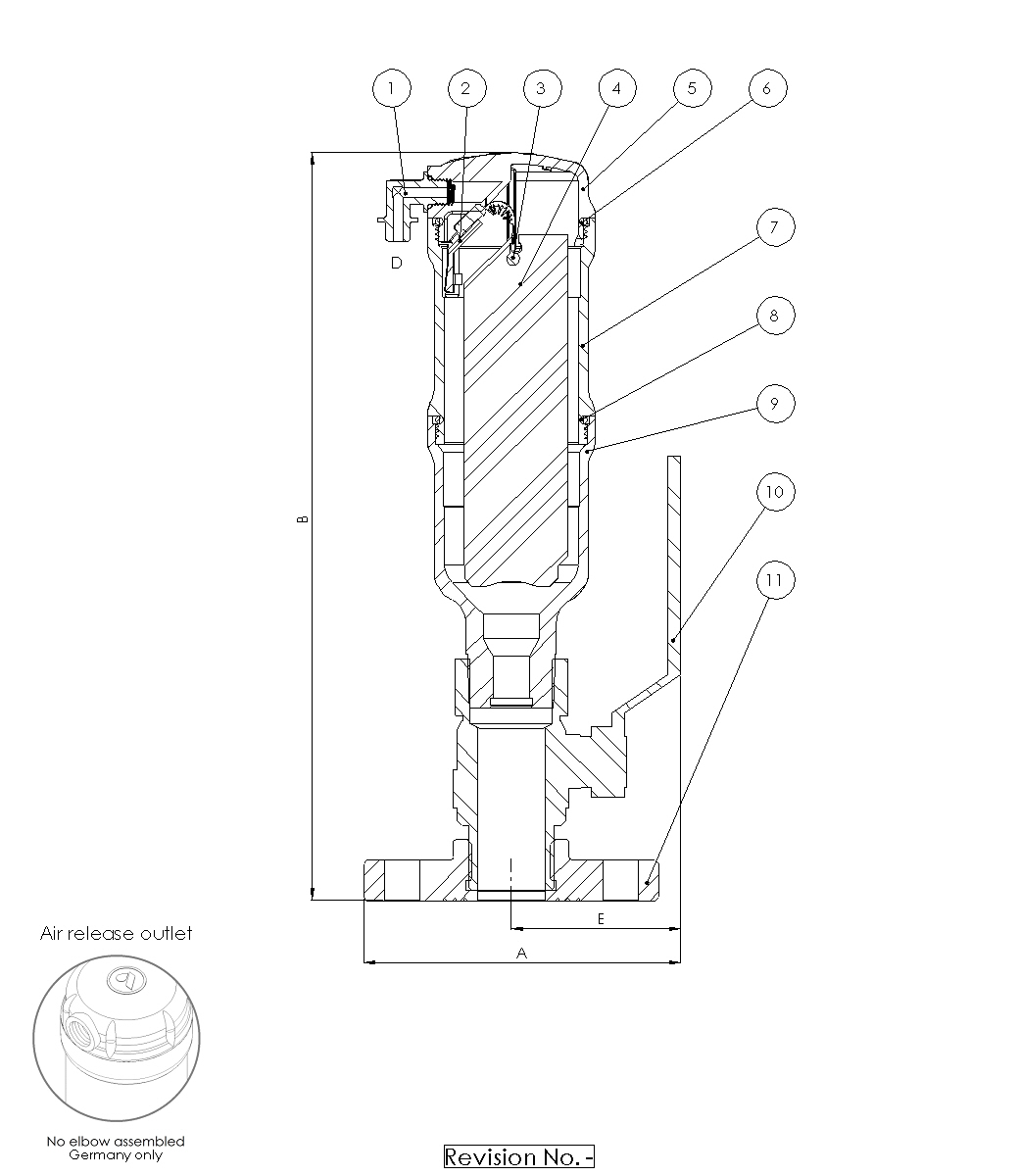

Dimension
123 mm (4.84″)
290 mm (11.42″)
66 mm (2.60″)
3/8″
Flange Dimensions
|
Specifications
S050
16 bar (250 psi)
Standard Flow
Metal
Flange
1/2″
Shutoff Valve
2.5 Kg (5.51 Lbs) ±5%
Multi Std.
|
