Dynamic Air Valve, D-070 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

ARI.D070.WTR.CAT.EN.0822.pdf

D070M1.WTR.CAT.ENG02.pdf

D070P.WTR.CAT.ENG04.pdf

ARI.D070Q.WTR.CAT.EN.0822.pdf

D070VB.WTR.CAT.ENG03.pdf

4.IOM.D070.pdf

D-070P-Q_02 17.3.21.pdf

D-070-P 02 17.3.21.pdf

Product Code: ‎D70M-I-P16–04V
Configuration Code: A1-LH-ZB-NE-OE-VS-FA-B0-R0-SN
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Valve Body Material
Valve Seat Material
O-ring Material
Bolt Set Material
Flushing Assembly
Bug Screen
Pressure Release Outlet

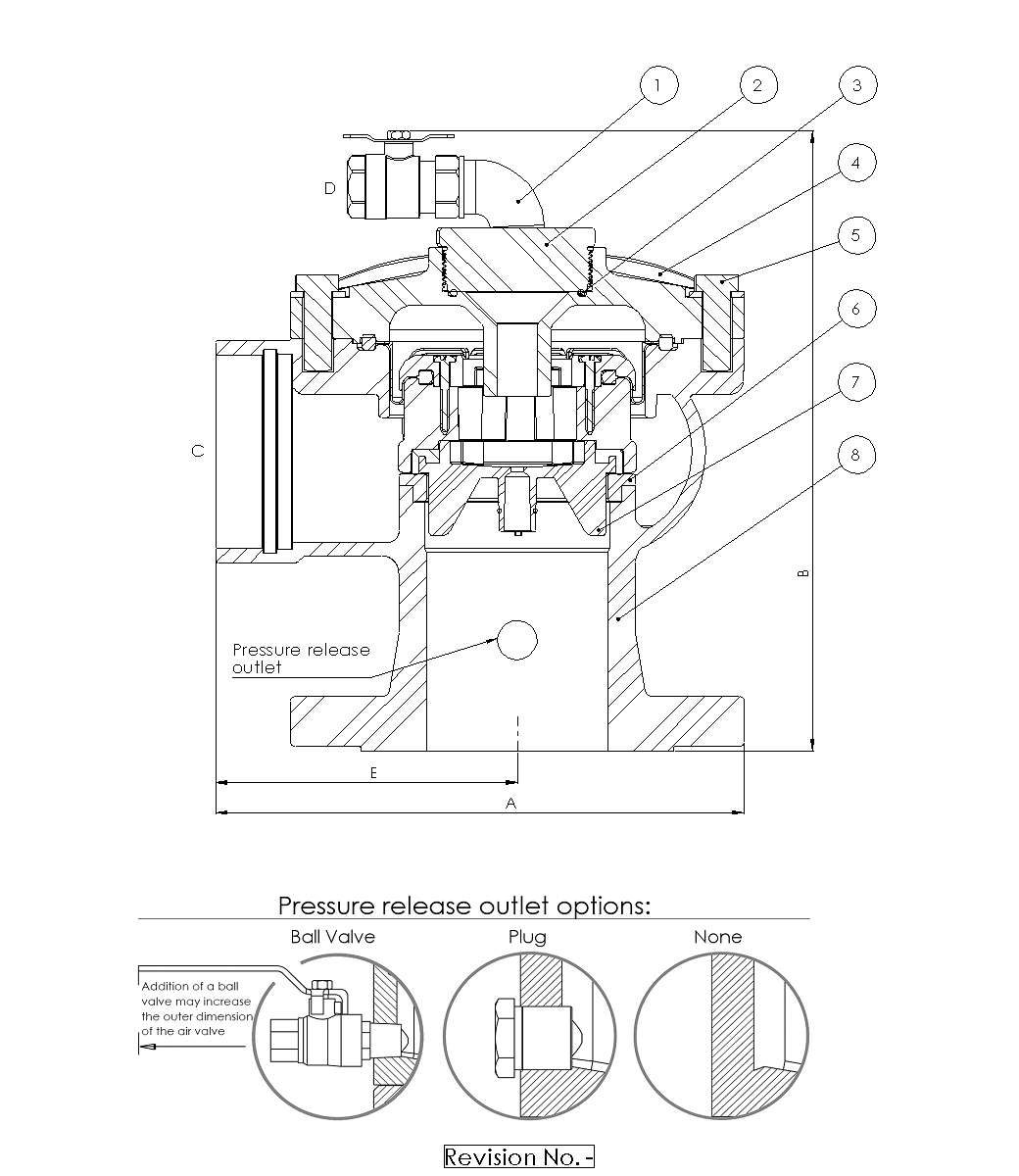

No. Part Material
1 Flushing Assembly Stainless Steel 316
2 Plug Acetal
3 O-Ring EPDM
4 ‎Cover Duct. Iron A536 60–40–18
5 Bolt, Nut & Washer Galvanized Steel
6 Orifice Seat Bronze B62 B271 C83600
7 Rolling Diaphragm Sealing Assy. Reinforced Nylon + E.D.P.M. + St. St. SAE 304 + Fabric
8 Body Duct. Iron A536 60-40-18
9 Bug Screen Without
10 Press. Release Outlet Without
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Dimension
247 mm (9.73″)
272 mm (10.71″)
3″
3/8″
133 mm (5.24″)
9″ (230 mm)
5/8″ (19 mm)
‎7–1/2″ (190.5 mm)
8
Flange Dimensions
Specifications
D070M1
16 bar (250 psi)
One Way - In
Flange
ASA 150
60°C (140°F)
17 Kg (37.48 Lbs) ±5%
4″
Victaulic Connection
