Dynamic Air Valve, D-070 Series
Product Code: D70M-I-P16–03
Configuration Code: GN-LN-ZB-NE-OE-B0-R0-SN
Configuration Code: GN-LN-ZB-NE-OE-B0-R0-SN
- Configuration
- Product Details
- Information
- Complimentary
Flange Standard
Valve Body Material
O-ring Material
Bug Screen
Pressure Release Outlet
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

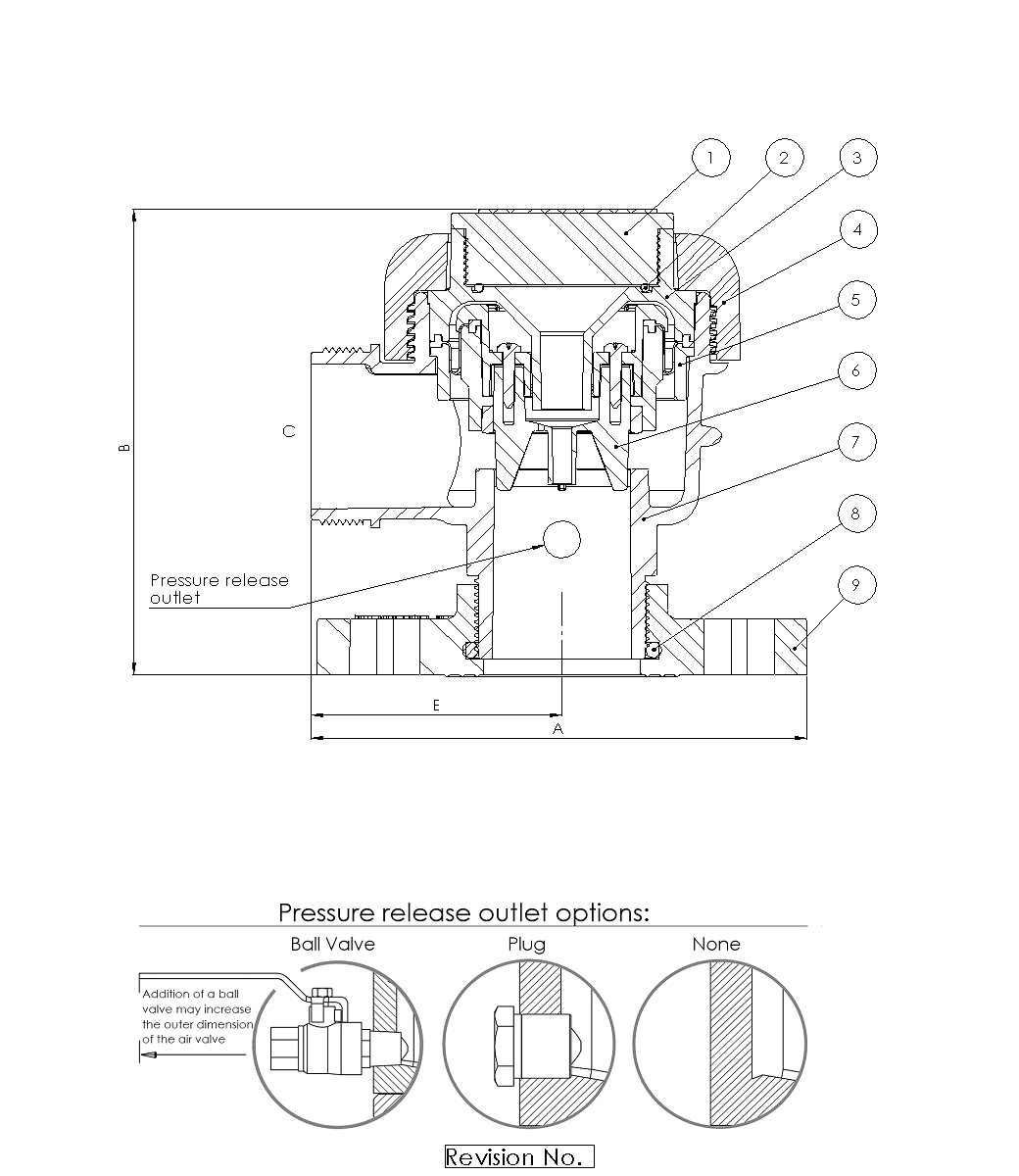

Dimension
201 mm (7.91″)
228 mm (8.98″)
2″
3/8″
84.5 mm (3.32″)
200 mm (7.8″)
25 mm (0.9″)
160 mm (6.3″)
8
Flange Dimensions
|
Specifications
D070M1
16 bar (250 psi)
One Way - In
Flange
Multi Std.
60°C (140°F)
2 Kg (4.41 Lbs) ±5%
3″
Threaded (standard)
|
