Dynamic Air Valve, D-070 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

ARI.D070.WTR.CAT.EN.0822.pdf

D070M1.WTR.CAT.ENG02.pdf

D070P.WTR.CAT.ENG04.pdf

ARI.D070Q.WTR.CAT.EN.0822.pdf

D070VB.WTR.CAT.ENG03.pdf

4.IOM.D070.pdf

D-070P-Q_02 17.3.21.pdf

D-070-P 02 17.3.21.pdf

Product Code: ‎D70M-P16–03
Configuration Code: GN-LN-ZB-NE-OE-FA-B0-R0-SN
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Valve Body Material
Pilot Valve Body Material
Pilot Valve Seal Material
O-ring Material
Flushing Assembly
Bug Screen
Pressure Release Outlet

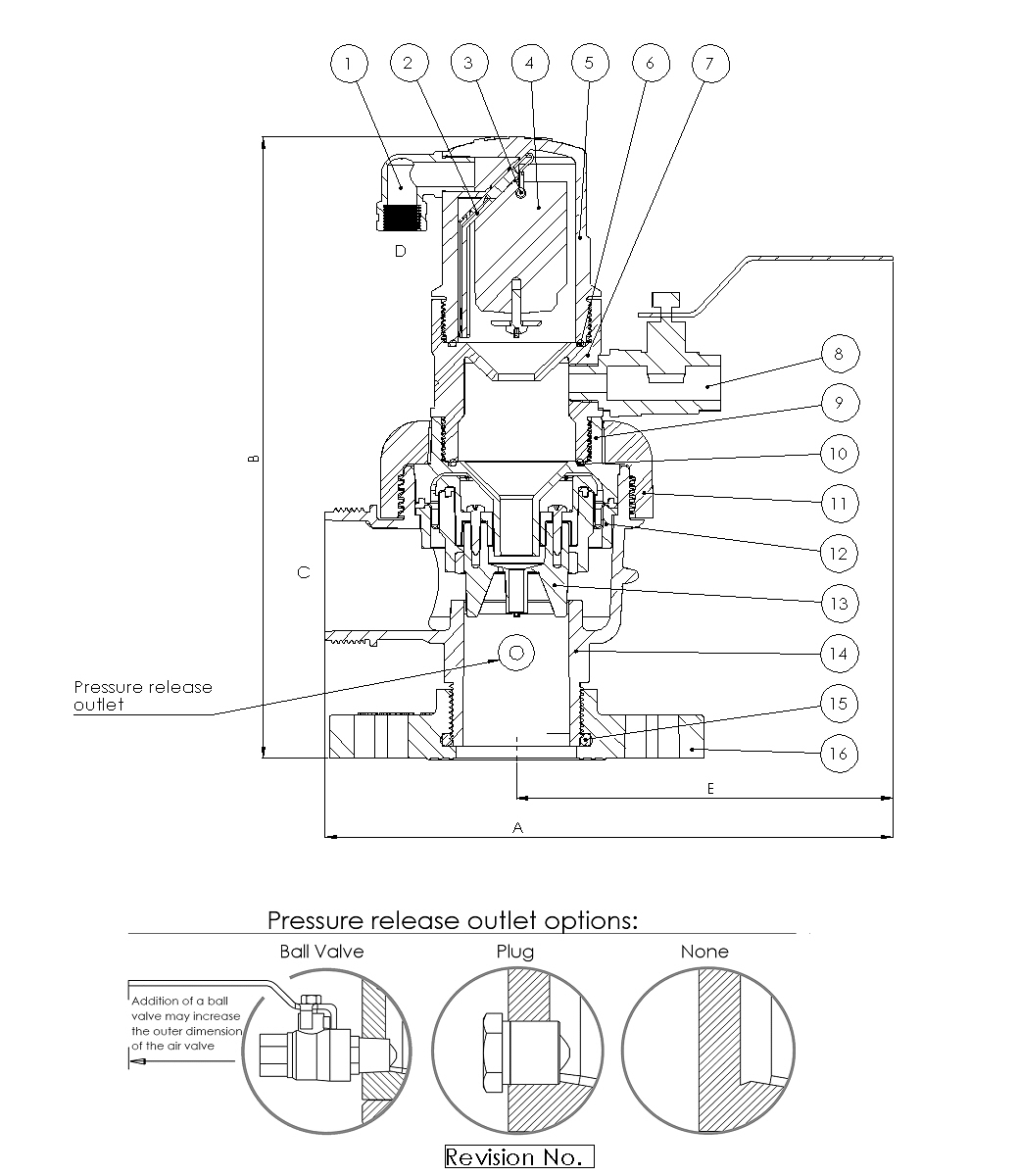

No. Part Material
1 Discharge Outlet Polypropylene
2 Clamping Stem Reinforced Nylon
3 Rolling Seal EPDM
4 Pilot Float Assy. Polypropylene
5 Pilot Body Reinforced Nylon
6 O-Ring EPDM
7 Adaptor Reinforced Nylon
8 Flushing Assembly Stainless Steel 316
9 Adaptor Reinforced Nylon
10 O-Ring EPDM
11 Locking Ring Reinforced Nylon
12 Supporting Ring Reinforced Nylon
13 Rolling Diaphragm Sealing Assy. Reinforced Nylon + E.D.P.M. + St. St. SAE 304 + Fabric
14 Body Reinforced Nylon
15 O-Ring EPDM
16 Flange Reinforced Nylon
17 Bug Screen Without
18 Press. Release Outlet Without
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Dimension
200 mm (7.88″)
278 mm (10.95″)
2″
3/8″
166 mm (6.54″)
200 mm (7.8″)
25 mm (0.9″)
160 mm (6.3″)
8
Flange Dimensions
Specifications
D070M1
16 bar (250 psi)
Standard Flow
Flange
Multi Std.
60°C (140°F)
2 Kg (4.41 Lbs) ±5%
3″
Threaded (standard)
