Kinetic Air/Vacuum Valves, K-060 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

K060.WTR.CAT.EN03.pdf

K060NS.WTR.CAT.EN01.pdf

ARI.K016.100.WTR.CAT.EN.0822.pdf

NS.CAT.ENG05.pdf

K060_IOM_EN_061021.pdf

Product Code: ‎K60-P10–10
Configuration Code: A1-XH-YE-ZB-VS-WP-AS-OB-R0-SP
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Kinetic Valve Body Material
Kinetic Valve Seal Material
Kinetic Valve Seat Material
Kinetic Valve Bolt Set Material
Kinetic Valve Float Material
O-ring Material
Pressure Release Outlet
Screen Cover Material

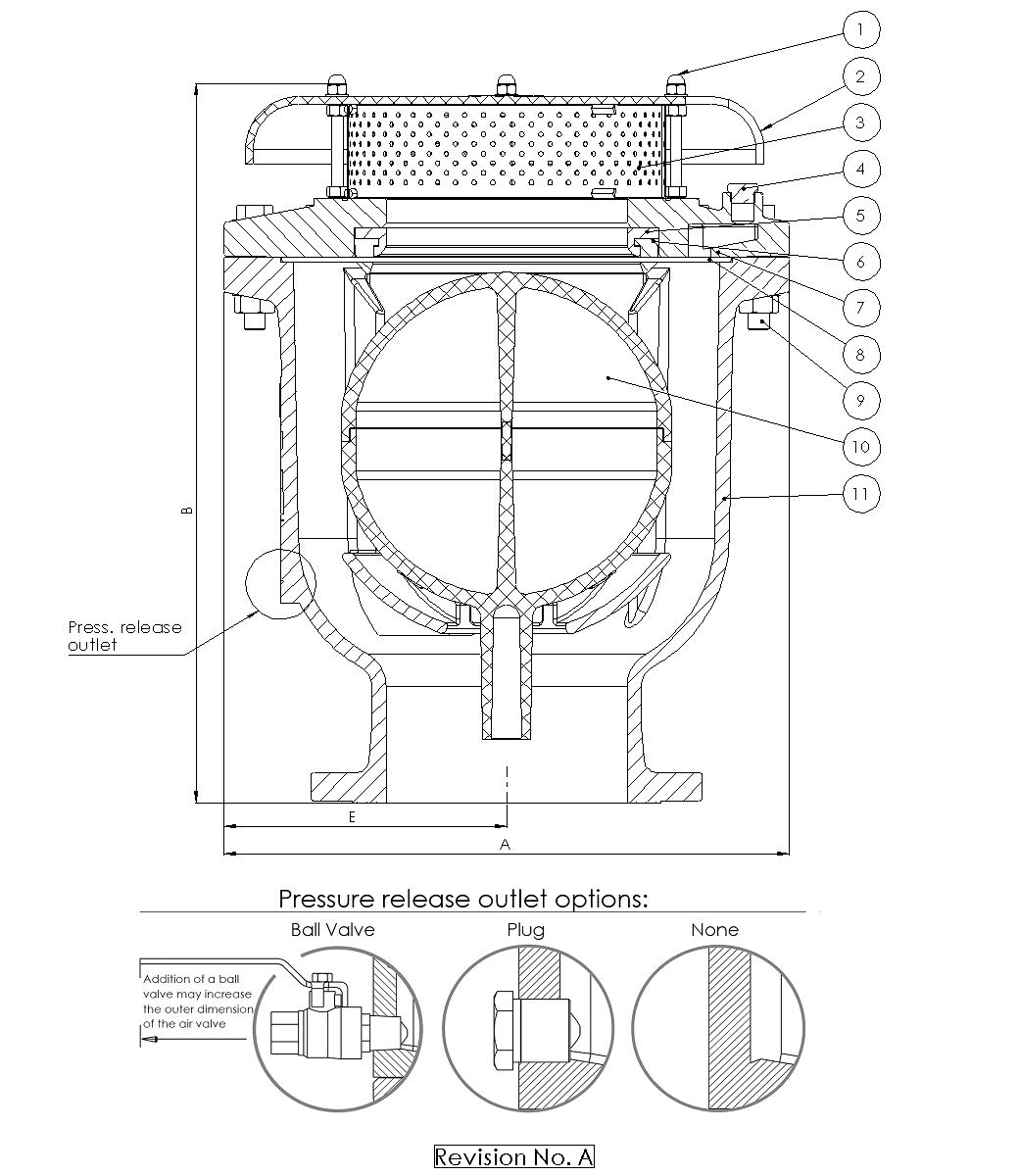

No. Part Material
1 Nut, Washer and Rod Stainless Steel SAE 304
2 Screen Cover Polyethylene
3 Screen Stainless Steel SAE 304
4 Plug Stainless Steel SAE 316
5 Orifice Seat Bronze B62 B271 C83600
6 Orifice Seal EPDM
7 Cover Duct. Iron A536 60-40-18
8 O-Ring Buna-N
9 Bolt, Nut and Washer Stainless Steel SAE 316
10 Float Polycarbonate
11 Body Duct. Iron A536 60-40-18
12
13
14
15
16
17
Dimension
586 mm (23.08″)
746 mm (29.39″)
293 mm (11.54″)
16″ (405 mm)
7/8″ (25.5 mm)
‎14–1/4″ (362 mm)
12
Flange Dimensions
Specifications
K060
10 bar (150 psi)
Standard Flow
Flange
ASA 150
10″
60°C (140°F)
237 Kg (522.58 Lbs) ±5%
49087 [mm²]
FBE Blue
