Home  Products  Kinetic (Air/Vacuum) Valves  High Flow  Full Bore Air Valve K-060  ‎Standard Pressure 10 bar – 16 bar

Kinetic Air/Vacuum Valves, K-060 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

K060.WTR.CAT.EN03.pdf

K060NS.WTR.CAT.EN01.pdf

ARI.K016.100.WTR.CAT.EN.0822.pdf

NS.CAT.ENG05.pdf

K060_IOM_EN_061021.pdf

Product Code: K60-NS-P16-T2
Configuration Code: NT-XH-YE-Z6-VS-WP-AS-OB-R0-SE
  • Configuration
  • Product Details
  • Information
  • Complimentary


Thread Type
Kinetic Valve Body Material
Kinetic Valve Seal Material
Kinetic Valve Seat Material
Kinetic Valve Bolt Set Material
Kinetic Valve Float Material
O-ring Material
Pressure Release Outlet
Screen Cover Material

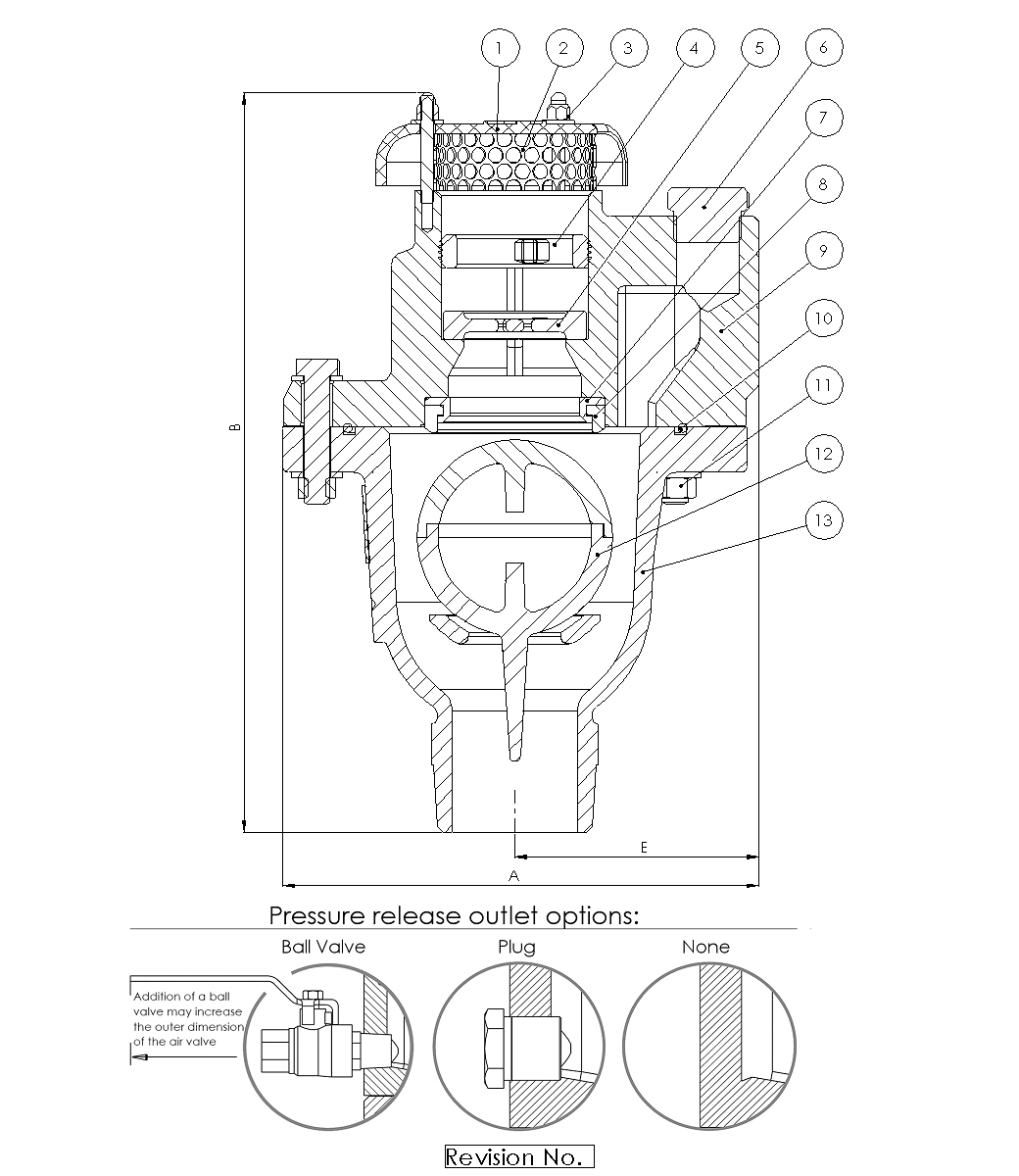

No. Part Material
1 Screen Cover Polypropylene
2 Screen Stainless Steel SAE 304
3 Nut, Washer and Rod Stainless Steel SAE 304
4 Ring Stainless Steel SAE 316
5 Non-Slam Disc Stainless Steel SAE 316
6 Plug Stainless Steel SAE 316
7 Orifice Seat Stainless Steel SAE 316
8 Orifice Seal EPDM
9 Cover Duct. Iron A536 60-40-18
10 O-Ring Buna-N
11 Bolt, Nut and Washer Stainless Steel SAE 316
12 Float Polycarbonate
13 Body Duct. Iron A536 60-40-18
14
15
16
17
Dimension
185 mm (7.28″)
287.6 mm (11.33″)
95 mm (3.74″)
Specifications
K060
16 bar (250 psi)
Non Slam
Threaded
2″
60°C (140°F)
10 Kg (22.05 Lbs) ±5%
1960 [mm²]
FBE Blue
