Kinetic Air/Vacuum Valves, K-060 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

K060.WTR.CAT.EN03.pdf

K060NS.WTR.CAT.EN01.pdf

ARI.K016.100.WTR.CAT.EN.0822.pdf

NS.CAT.ENG05.pdf

K060_IOM_EN_061021.pdf

Product Code: ‎K60-SE-P16–06
Configuration Code: A1-XH-YE-ZB-VS-WP-AS-OB-R0-EP-SP
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Kinetic Valve Body Material
Kinetic Valve Seal Material
Kinetic Valve Seat Material
Kinetic Valve Bolt Set Material
Kinetic Valve Float Material
O-ring Material
Pressure Release Outlet
Vent Connection Material

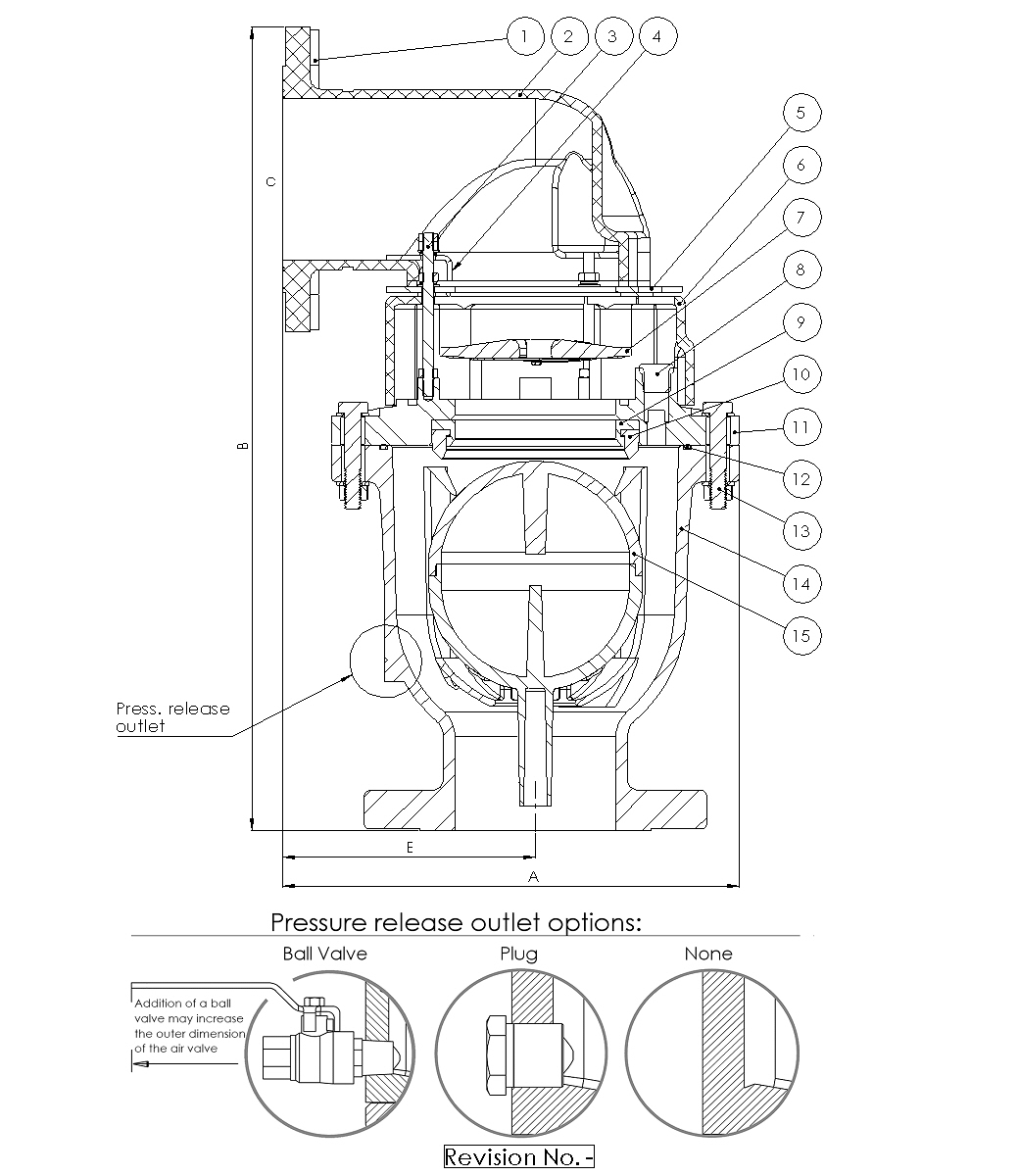

No. Part Material
1 Flange Supports Stainless Steel SAE 316
2 Discharge Elbow Polyethylene
3 Nut, Washer and Rod Stainless Steel SAE 304
4 Angle Support Stainless Steel SAE 316
5 Ring Stainless Steel SAE 316
6 Non-slam Housing Polyethylene
7 Non-slam Disc Ductile Iron
8 Plug Stainless Steel SAE 316
9 Orifice Seat Bronze B62 B271 C83600
10 Orifice Seal EPDM
11 Cover Duct. Iron A536 60-40-18
12 O-Ring Buna-N
13 Bolt, Nut and Washer Stainless Steel SAE 316
14 Body Duct. Iron A536 60-40-18
15 Float Polycarbonate
16
17
Dimension
426.5 mm (16.80″)
749 mm (29.51″)
6″ (150mm)
236 mm (9.29″)
11″ (280 mm)
3/4″ (22.5 mm)
‎9–1/2″ (241.3 mm)
8
Flange Dimensions
Specifications
K060
16 bar (250 psi)
Non Slam
Flange
ASA 150
6″
60°C (140°F)
91.8 Kg (202.41 Lbs) ±5%
17662 [mm²]
FBE Blue
