Home  Products  Automatic Air Valves (Air Release Valves)  Wastewater (S020/022)  S-020/022  Working Pressure 16 bar / 250 psi

Automatic Air Valve, S-020 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

S020.SWG.CAT.ENG03.pdf

NS.CAT.ENG05.pdf

Product Code: ‎S20-P16–02
Configuration Code: GN-LH-NE-ST-BS-PP-OB-SA-CT-RW-QS-VS-TF
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Body Material
Seal Material
Float Rod Material
Float Spring Material
Valve Bolt Set Material
Stopper
O-ring Material
Clamp
Pressure Release Outlet
Air Release Outlet Type
Float Material
Rod Material

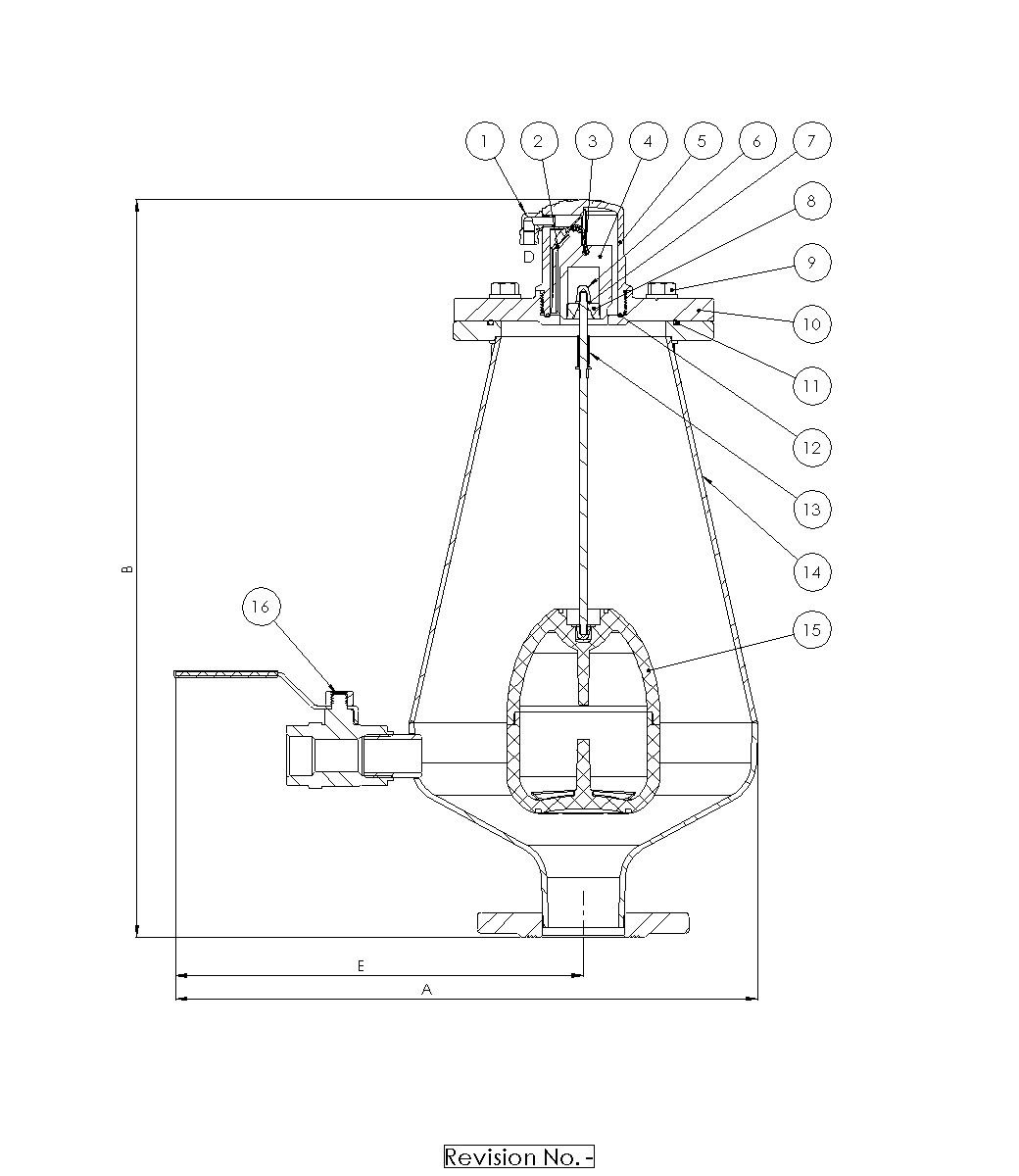

No. Part Material
1 Air Release Outlet Polypropylene, BSPT
2 Clamping Stem Polypropylene
3 Rolling Seal EPDM
4 Float Polypropylene
5 Body Duct. Iron A536 60-40-18
6 Domed Nut Stainless Steel SAE 316
7 Washer Stainless Steel SAE 316
8 Stopper Polypropylene
9 Bolt, Nut & Washer Galvanized Steel
10 Cover Duct. Iron A536 60-40-18
11 O-Ring Buna-N
12 O-Ring Buna-N
13 Spring Stainless Steel SAE 316
14 Body Duct. Iron A536 60-40-18
15 Float Assembly * detailed below
16 Press. Release Outlet Stainless Steel 316 Ball Valve
17 * Assy: Float Stainless Steel SAE 316
18 * Assy: Rod Stainless Steel SAE 316
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Dimension
453 mm (17.84″)
574 mm (22.61″)
317 mm (12.48″)
1½″
165 mm (6.5″)
23.5 mm (0.9″)
119.5 mm (4.7″)
4

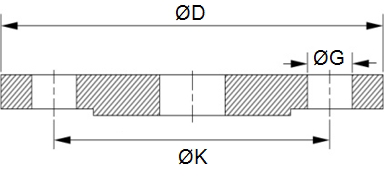

Flange Dimensions
Specifications
16 bar (250psi)
Standard Flow
Flange
Multi Std.
2″
16.7 Kg (36.82 Lbs) ±5%
