Home  Products  Automatic Air Valves (Air Release Valves)  Wastewater (S020/022)  S-020/022  Working Pressure 25 bar / 360 psi

Automatic Air Valve, S-020 Series

zoom click to enlarge


Drawings Download

Customer drawings are available for registered users only.

If you are registered, please login. If not, please Register.

Documentation

S020.SWG.CAT.ENG03.pdf

NS.CAT.ENG05.pdf

Product Code: ‎S22-V-P16–04
Configuration Code: GN-LH-NE-ST-BS-PP-OB-SA-CT-RW-VS-TF
  • Configuration
  • Product Details
  • Information
  • Complimentary


Flange Standard
Body Material
Seal Material
Float Rod Material
Float Spring Material
Valve Bolt Set Material
Stopper
O-ring Material
Clamp
Pressure Release Outlet
Float Material
Rod Material

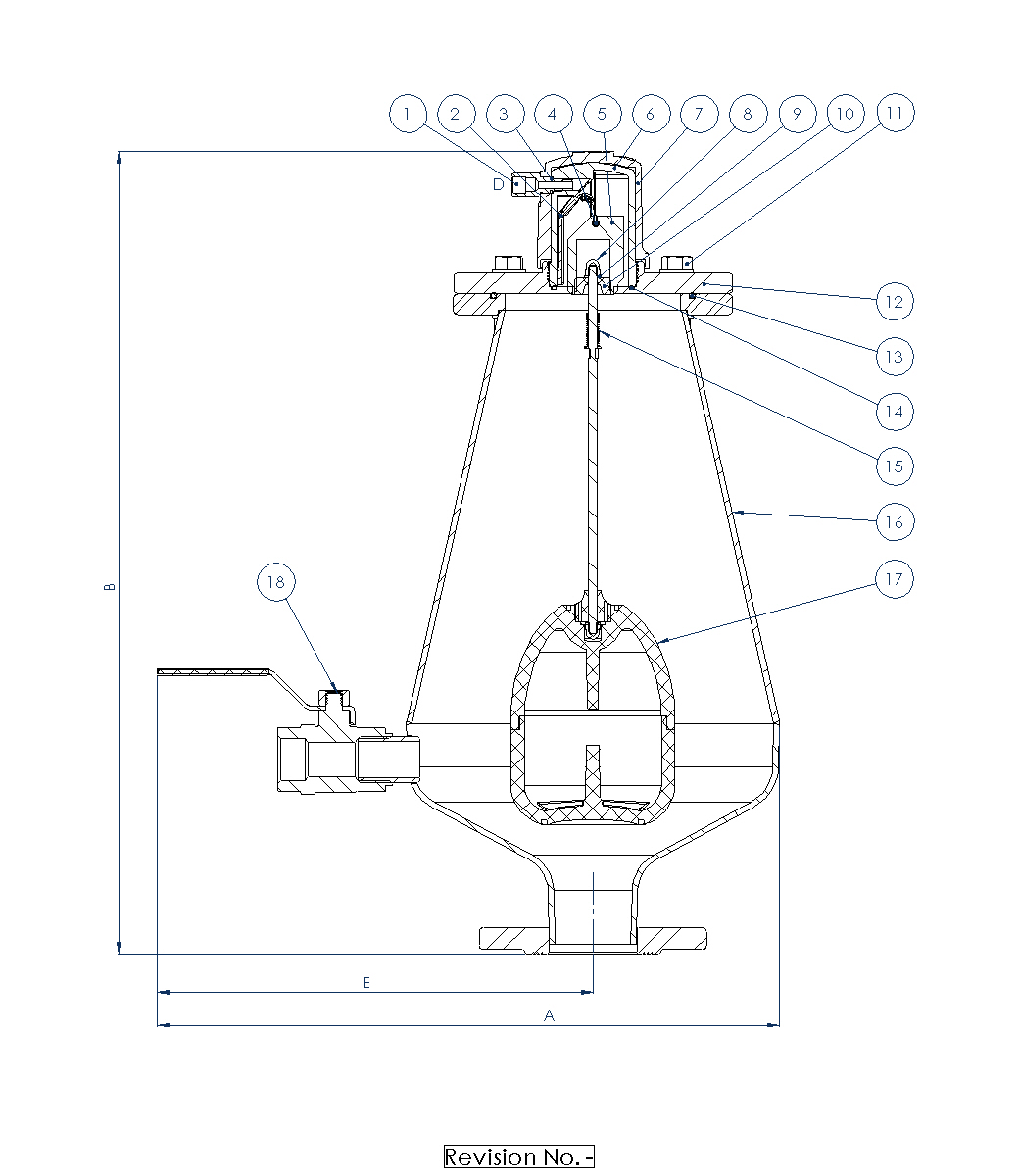

No. Part Material
1 One-way Component Polypropylene
2 Clamping Stem Polypropylene
3 O-Ring Buna-N
4 Rolling Seal EPDM
5 Float Polypropylene
6 Body Duct. Iron A536 60-40-18
7 ‎Casing Duct. Iron A536–60–40–18
8 Domed Nut Stainless Steel SAE 316
9 Washer Stainless Steel SAE 316
10 Stopper Polypropylene
11 Bolt, Nut & Washer Galvanized Steel
12 Cover Duct. Iron A536 60-40-18
13 O-Ring Buna-N
14 O-Ring Buna-N
15 Spring Stainless Steel SAE 316
16 Body Duct. Iron A536 60-40-18
17 Float Assembly * detailed below
18 Press. Release Outlet Stainless Steel 316 Ball Valve
19 * Assy: Float Stainless Steel SAE 316
20 * Assy: Rod Stainless Steel SAE 316
21
22
23
24
25
26
27
28
29
30
31
32
Dimension
453 mm (17.84″)
573 mm (22.57″)
317 mm (12.48″)
1½″
228 mm (8.9″)
24.35 mm (0.9″)
184 mm (7.2″)
8
Flange Dimensions
Specifications
16 bar (250psi)
One Way - Out
Flange
Multi Std.
4″
22.3 Kg (49.17 Lbs) ±5%
